AT&T T-Mobile Cell Phone Signal Booster Home ATT Cell Phone Booster Repeater Extender 4G LTE Band 12 17 700mhz Cell Booster Home ATT Cricket Cell Signal Booster Amplifier LPDA Antenna 5000sqft FUSTAR

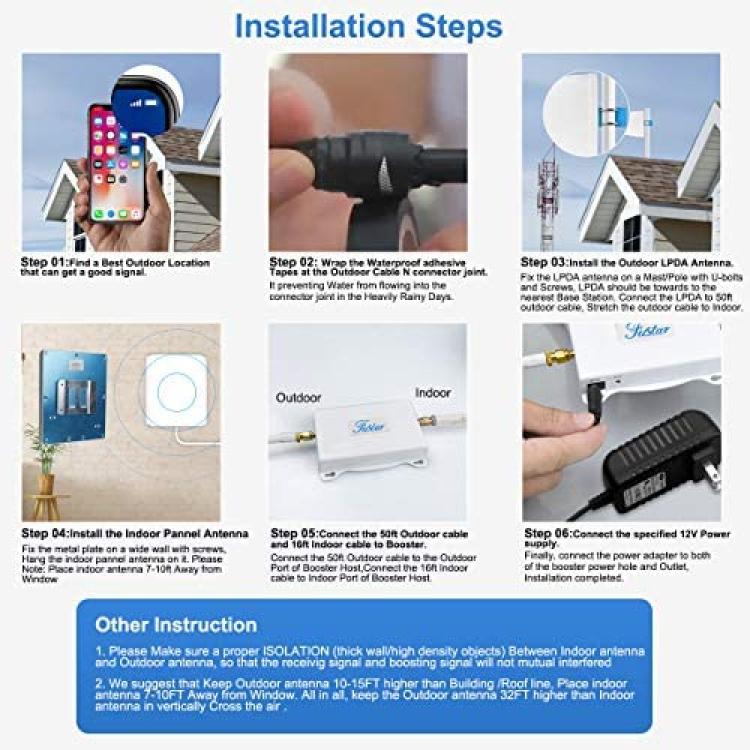

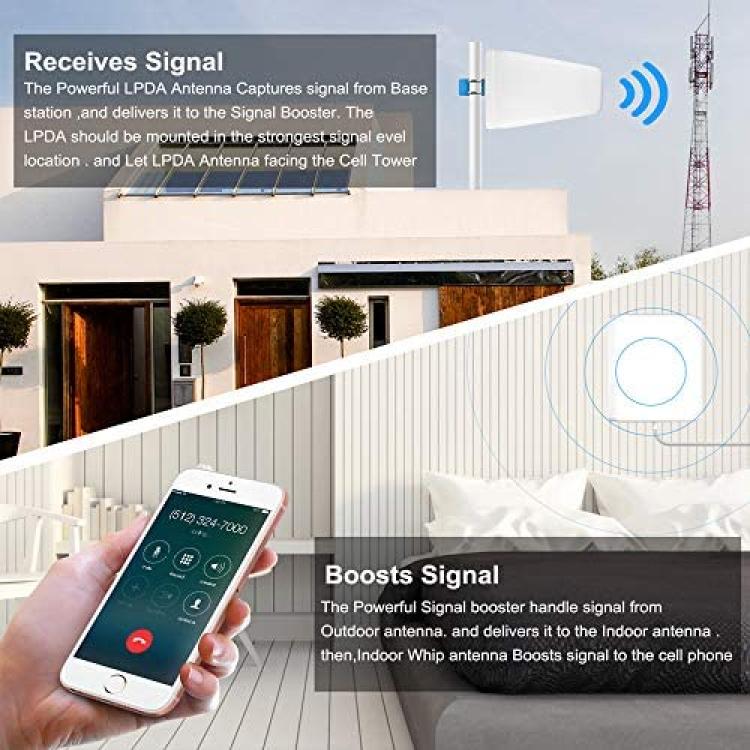

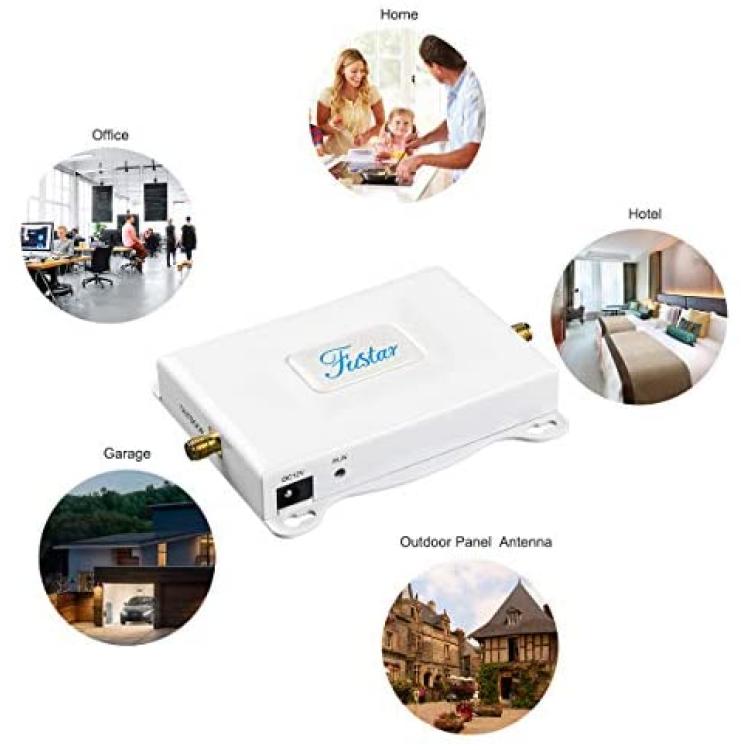

Fustar Cell Phone Signal Booster AT&T 4G LTE is compatible with the 4G LTE Network 700mhz Band 12 and Band 17 for All North American Users. The Cell Phone Booster Repeater Network Service is compatible with AT&T Cricket U.S. Cellular T-Mobile. The Specified operating Frequency is 700 MHz Band 12 & 17. That means, Your phone currently operating frequency should be the same as this cell booster's, so the booster can connect the signals properly between the Cell Tower and Cell Phone.This ATT Cell Signal Booster Amplifier kit aimed at solving your Poor 4G Cell Reception,it improves your Phone 4G Data and enhances Calling voice quality. Stay connected and No more missed & dropped calls,Enjoy fast 4G Internet. Recommended for using at Home | Office | Basement | Garage | Village | Store | Remote Area | Suburbs...etc. Max. coverage up to 4000-5000sq.ft. Main Specification Booster Technical Parameters Indoor Hanging Wall Pannel Antenna Outdoor Directional LPDA Antenna Power Supply:110~240V input,12V output ,50/60Hz Impedance: 50ohm Booster I/O Port: SMA-Female Both ALC(Automatic Level Control): ?30dB(Uplink/Downlink) Output Power: 17dBm(Uplink ),10dBm(Downlink) Noise Figure ?6dB ? Supports for Multi-user simultaneously ? High Gain 65dB Booster for Standard Home Use ?Coverage up to 4000 to 5000 square feet for 2-4 Rooms with Good signals. ? The inside coverage will be various base on the Outside signal level,Building isolation effects and the Height of the outdoor antenna located. ? Recommended for using at Home | Office | Basement | Garage | Village | Store | Rural Area | Suburbs... instability signal area etc. 1 x Cell phone signal booster host (ATT 700mhz) 1 x Indoor wall-mounted pannel antenna 1 x Outdoor Directional LPDA antenna 1 x 16ft Indoor coaxial cable 4D-FB (N-SMA ends) 1x 50ft Outdoor coaxial cable 4D-FB (N-SMA ends) 1 x U-Bolt with Screws 1 x L Shape Bracket 1 x User Instruction Manual 1. Outdoor Signal Source is Required 2-3 bars. 2. Find the Best signal location at the outdoor, 3. Place LPDA antenna 7-10 ft above the Building / Roofing. 4. LPDA should be towards the nearest AT&T Base Station where the signal coming from 5. Mount the Pannel antena on broad wall .Keep the indoor Wall Pannel antennas at least 7-10 ft away from window. 6. Thick Wall / high-density objects separate the Two antenna. The Isolation distance between the two antennas is 32ft , If not , signals is easily interfered FAQs: Q1: Why my signal booster can't improve signal inside the house ? A: Please check if your cell phone receiving signal is the same as the signal booster's ( 700mhz Band 12/ Band 17) ? - a) Yes , but not work , please check if both of the booster and power supply powered on normally and if the antennas installation correctly as suggested ? - b) No , I found the cell phone network frequency is different from the signal booster's.then contact seller for Return / Replacement. Q2: Although both of the cell network frequency and installation are correct, the signal booster not improve signal, Why ? A : When this happens, turn off the DC power adapter firstly , and then try to adjust of the Antennas isolated distance / Outdoor antenna's height/ Change the antenna to a better place. If the trouble still can't solved ,please send message to us. We accepted 30 Days Return without reasons,3 Months Replacement for defective product. Q3: What does it mean when the booster indicator red light is on ? A1: It is not defective. If the booster keep blinking green / steady red light and signal not improved , it mostly becauses of the Outdoor antenna is too close to the indoor antenna signal interference. or, There is space signal interference happened , so the Booster AGC stay on Over power or self-oscillation, so , the signal not improved temporarily . A2: Solution: Turn off the DC power adapter, Move the outdoor antenna further away from indoor antenna. Make sure the two antennas separated by walls and the isolated distance 25-32ft as suggested. Restart the power supply. If not help, contact seller for other solutions. Q4: How to register the booster with Serial Number ? A: Not all of consumers are required to register the booster. It depends on the requirement at your location. The Guides to signal booster Registration: Step 1: Open the following registeration link given , www.waveform.com/pages/guide-to-signal-booster-registration Step 2: Find out cell carriers(AT&T) that compatible with your booster. Click and Enter Step 3: Fill in your Location informations as required. and fill in Booster's Serial Number .Very easy to register. Please note : Serial Number is the FCC ID ( you can find FCC ID on the Label of cell booster device ).
