AT&T Cell Phone Signal Booster Home 4G LTE ATT T-Mobile US Cellular Cell Phone Booster Signal Repeater 700mhz Band 12/17 Cell Booster ATT Cell Phone Signal Amplifier Antenna Kit LCD Boost 4G Data/Call

AT&T Cell Phone Signal Booster 4G LTE 700mhz Band 12/17 with LCD Display
The one booster you are looking for in the market.The ATT Cell Phone Booster Repeater can improve your Phone 4G 700mhz Data and Calling quality.It designed to work with the Network of AT&T Cricket T-Mobile 4G LTE 700 MHz Band 12/17 for all North American Users.The LCD screen improved using experience,the LCD shows signals strength received and Booster working condition.The inside Antenna Coverage will be various base on the Outside Signal Level,Building Structure,Outdoor Antenna Location and Height.Signal coverage up to 2000sq.ft.


Specification:
Item Name: Cell phone signal booster
Model: SWA70
Brand:Fustar
Operate Frequency:700mhz of Band 12/17 Only

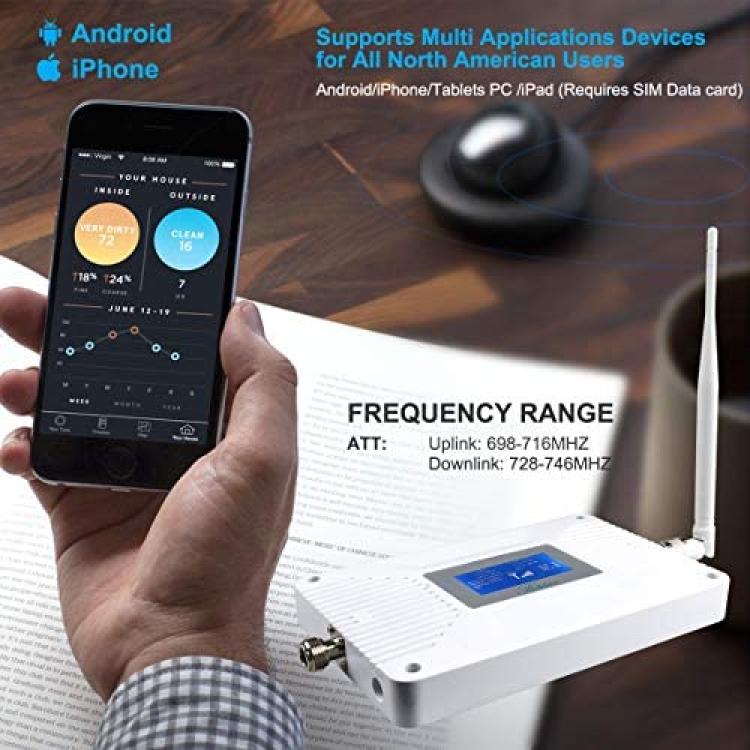

Frequency Range:Uplink 698-716MHz;Downlink 728-746MHz
Screen:LCD
Cell Service Provider:AT&T,T-Mobile,Cricket,U.S. Cellular
Network:4G LTE
Booster Gain:65±3dB(Uplink/Downlink)
ALC(Automatic Level Control):?30dB(Uplink/Downlink)
Power Supply:DC12V output
Booster Port:N-Female
Indoor Port:MS
Outdoor Port:BTS
Color:White
Impedance:50ohm
Working Temp:-13?~131?
Protection Grade:IP30
Cable:50ft 4D
Indoor Antenna:Omni Whip
Outdoor antenna:Directional Yagi
Coverage:1500-2000sq.ft

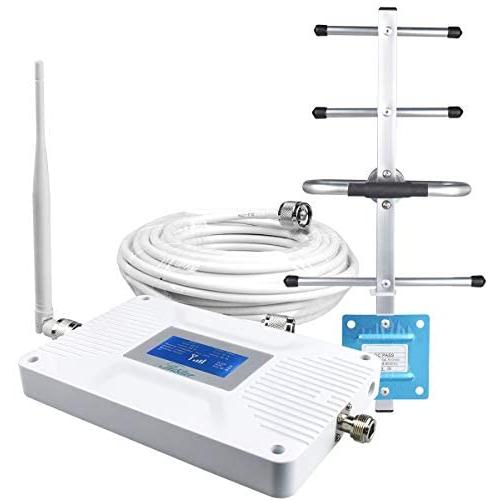

Package
1xCell phone signal booster
1xIndoor whip antenna
1xOutdoor Yagi antenna
1x50ft Outdoor 4D coax cable
1xScrews set
1xManual

Attentions:
a)Mount the Outdoor Yagi antenna at the Best signal location at the outdoor,Place the Outdoor antenna 10-15ft Above the Building
b)Place Indoor antenna far away from opened windows(7ft at least)
c)Directional Yagi Antenna should towards the AT&T Cell Tower
d) Make sure 32ft separated distance between the Two Antennas.Otherwise,The signals will be interfered
e)Basic Signal required:2-3 bars Outdoor

Tips:
The Registered number is the FCC ID that is on the booster base label
