AT&T Cell Phone Signal Booster 4G LTE AT&T T-Mobile Cell Phone Booster 700mhz Band 12/17 Cell Booster Home ATT Cricket Cell Signal Booster Mobile Signal Amplifier Yagi Antenna Kit Boost 4G Data/Call

AT&T Cell Phone Signal Booster Amplifier Extender AT&T Cricket U.S. Cellular Straight Talk 4G LTE 700mhz Band 12/17
The AT&T Signal Booster kit can solve your network problem,it improves your Phone Internet Data and Calling voice quality.No more missed & dropped calls,and enjoy a faster Internet.The ATT cell phone booster repeater work with the Networks of AT&T Cricket U.S. Cellular Straight Talk 4G LTE 700 MHz Band 12/17 for all North American users.The inside coverage will be various base on the outside signal level,Max coverage is up to 2000sq.ft.


Signal Booster Specifics
Item Name: Cell phone signal booster Band 12/17 -Black
Model: NBA70
Brand: Fustar
Cell Service Provider: AT&T, Cricket,U.S. Cellular,T-Mobile,Straight Talk
Network: 4G LTE
Compatible Devices: Android/iPhone/Tablet PC

Operate Frequency:700mhz of Band 12/17
Freq. Range:Uplink 698-716MHz;Downlink 728-746MHz
Booster Gain: 60±2dB(UL/DL)
ALC(Auto Level Control): ?30dB(UL/DL)
Power Supply:110 V input,12V output
Booster I/O Port:SMA-Female
Impedance:50ohm
Working Temperature:-13?~131?
Protection Grade:IP40
Indoor Antenna: Omni Whip
Outdoor antenna: Directional Yagi
Coverage range:1500-2000sq.ft for 2-4 rooms
Support Users:Multi-users

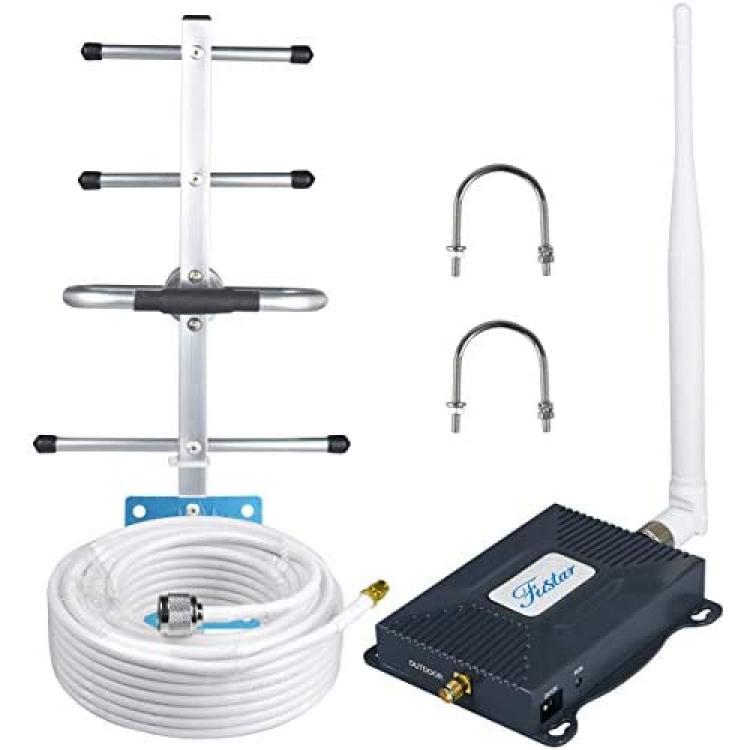

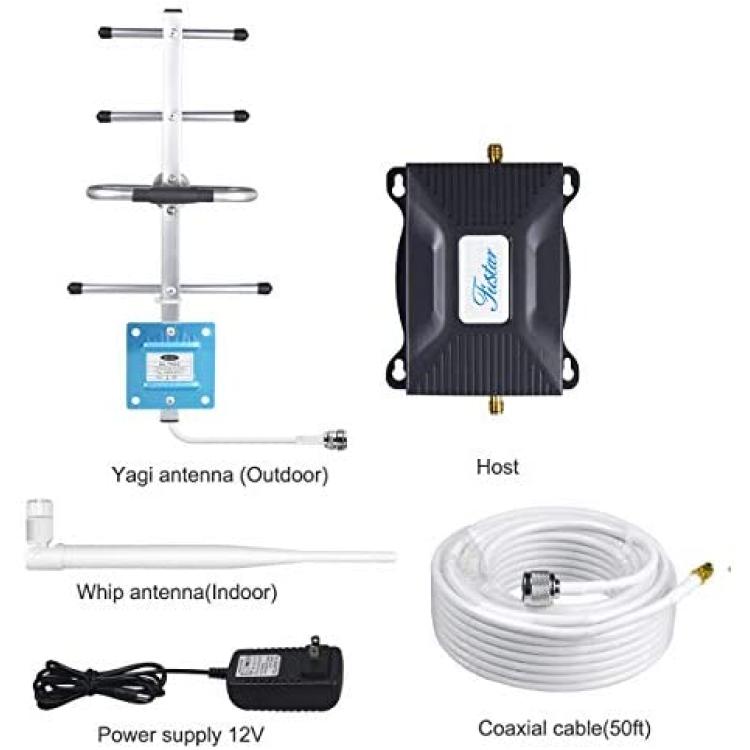

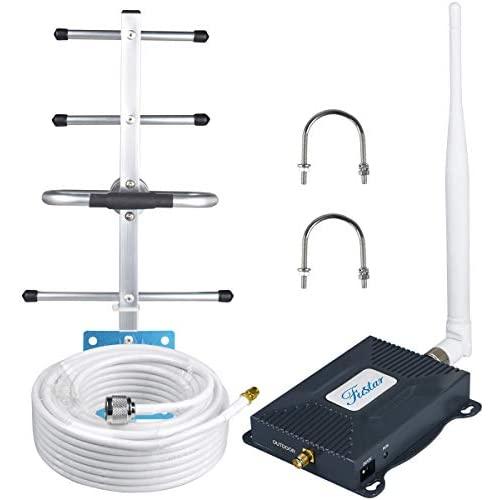

Package
1xCell phone signal booster-Black
1xIndoor whip antenna
1xOutdoor Yagi antenna
1x50ft 4D Outdoor coax cable
1xUser Manual

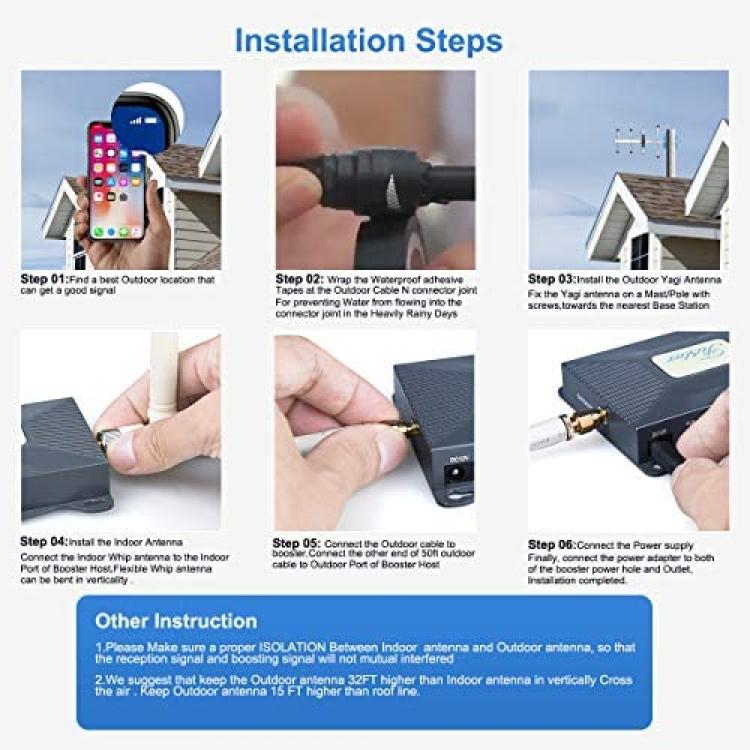

Attentions:

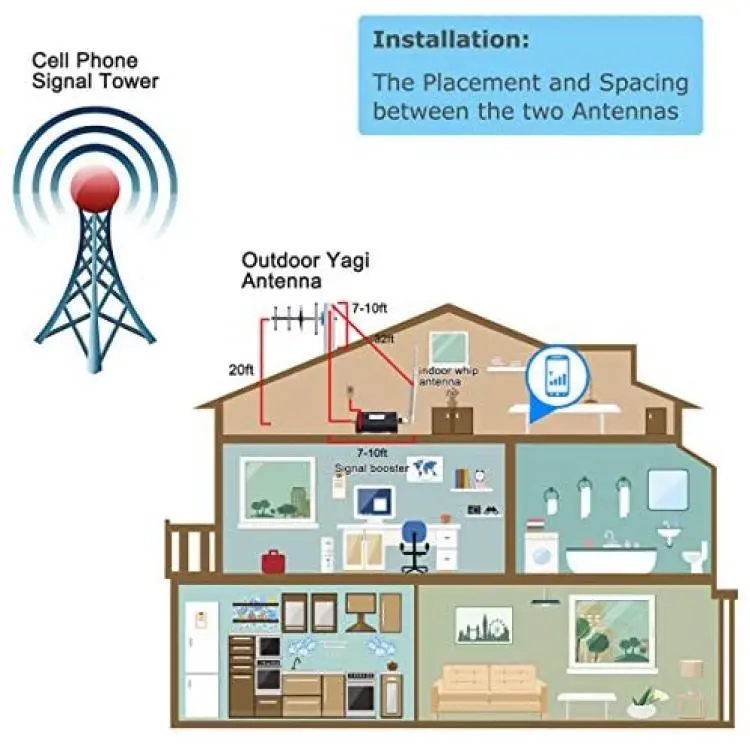

a)Mount the Outdoor Yagi antenna at the Best signal location at the outdoor,Place the Outdoor antenna 7-10ft Above the Building
b)Place Indoor antenna far away from opened windows(7-10ft)
c)Directional Yagi Antenna should towards the AT&T Cell Tower
d)Make sure 32ft separated distance between the Two Antennas
If not,The signals will be interfered
e)Basic Signal Required :2-3 bars Outdoor

Tips:
The Registered Serial Number is the FCC ID which is on the booster base label
