Verizon AT&T Signal Booster 4G LTE Cell Phone Signal Booster Repeater Band 12/13/17 Multi Bands 700mhz 4G LTE ATT Verizon Cell Phone Booster Extender Mobile Phone Signal Amplifier Antenna LCD 5000sqft

Multi Bands Cell Phone Signal Booster for Home 4G LTE Dual 700mhz Band 12/13/17
The Multi Bands Signal Booster kit can solve your bad network problem,it improves your 4G Cellular Data and Voice Quality.Faster 4G and Fewer Dropped Calls,The Cell Booster works with Network of Verizon AT&T 4G LTE Dual 700 MHz Band 12/13/17 for all North American Users.The Outdoor LPDA Antenna has the stronger reception capacity among various antennas.The inside Antenna Coverage will be various base on the Outside Signal Level,Building Structure,Pannel Mounting Position,Outdoor Antenna Location and Height.Signal Coverage Up to 5000sq.ft

Specification
Item Name:Multi-bands Cell phone signal booster
Frequency:700mhz of Band 13/12/17
Freq. Range 1:Band 12/17(ATT)Uplink 698-716MHz;Downlink 728-746MHz
Freq. Range 2:Band 13 (Verizon)Uplink 777-787MHz;Downlink 746-756MHz
Screen: LCD
Cell Service Provider:Verizon,AT&T,U.S. Cellular,Cricket
Network:4G LTE
Booster Gain: 65±3dB(Uplink&Downlink)
ALC:?30dB(Uplink&Downlink);
Power Supply:DC 12V
Indoor Port: MS
Outdoor Port:BTS
Impedance:50ohm
Antennas:Indoor Wall-mount Pannel Antenna,Outdoor Directional LPDA antenna
Coverage Range:4000-5000sq.ft
Supports for Multi-users

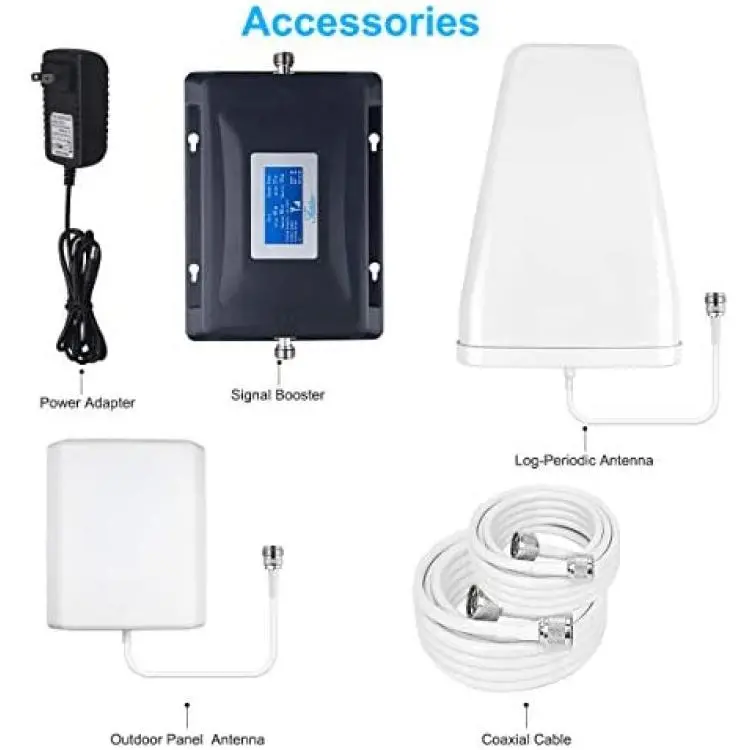

Package
1xCell phone signal booster host
1xIndoor Pannel Antenna
1xOutdoor LPDA antenna
1x 50ft Outdoor 4D Cable
1x16ft Indoor 4D Cable
1x Manual

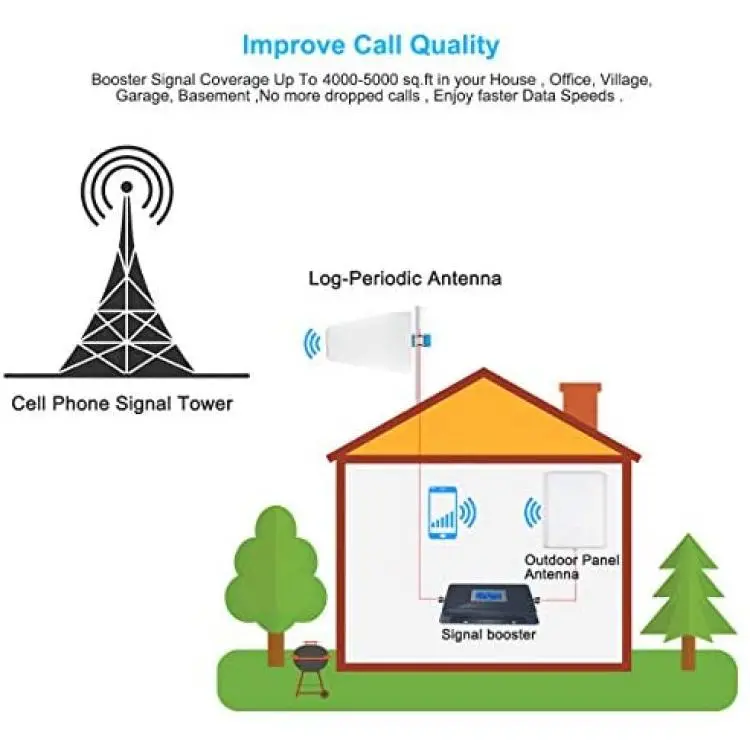

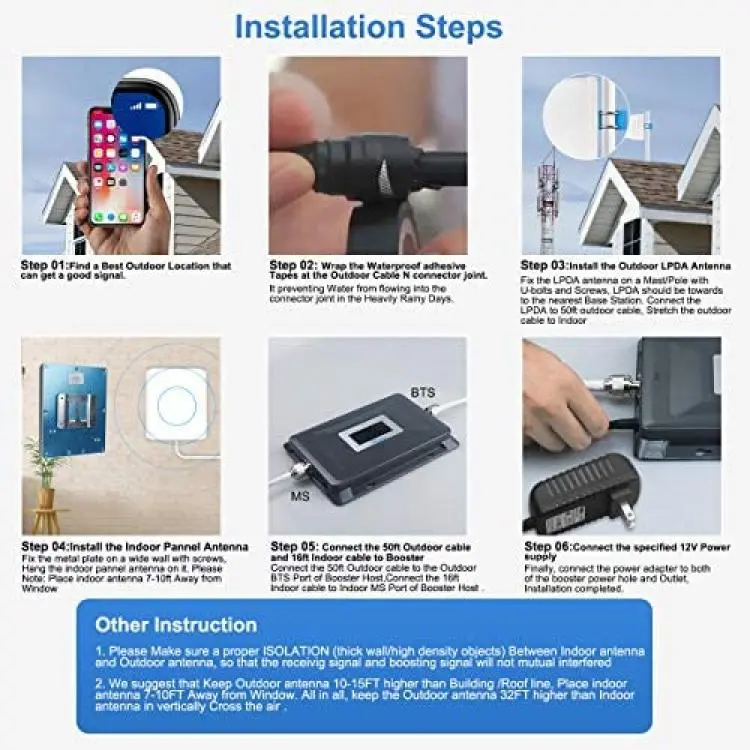

Attentions:
a)Mount the Outdoor LPDA antenna at the Best signal location at the outdoor,Place the LPDA antenna 10-15ft Above the Building
b)Place Indoor antenna far away from opened windows(10ft at least)
c)Directional LPDA Antenna should towards the Cell Tower
d) Make sure 32ft separated distance between the Two Antennas. If not,The signals will be interfered.
e)Original Signal Required 2-3 bars Outdoor

Tips:
The Registered Serial number is the FCC ID that is on the booster base label
