AWS 1700/2100Mhz Band 4 Cell Phone Signal Booster for Home T-Mobile MetroPCS AT&T Signal Booster 3G 4G 1700mhz Band 4 Cell Phone Booster Signal Amplifier Enhances Cell Reception Call/Data FUSTAR

T-Mobile AT&T Verizon Cell Phone Signal Booster Home 1700mhz Band 4
This Cell Signal Booster Amplifier is designed to work with the Cell Networks of 3G 4G 1700MHz Band 4 for all North American users.This 3G 4G Signal Booster Repeater kit capable to improve your AT&T T-Mobile MetroPCS 3G 4G 1700mhz Internet Data Text upload & download speed and calling Voice quality.The inside coverage will be various base on the outside signal level,1-2 bars can cover reach 500-800sq.ft ,3-4 bars can cover reach 800-1000sq.ft,4-5 bars can cover 1000-1500sq.ft. Before purchase ,Please make sure this signal booster is compatible with your phone network frequency at your area .

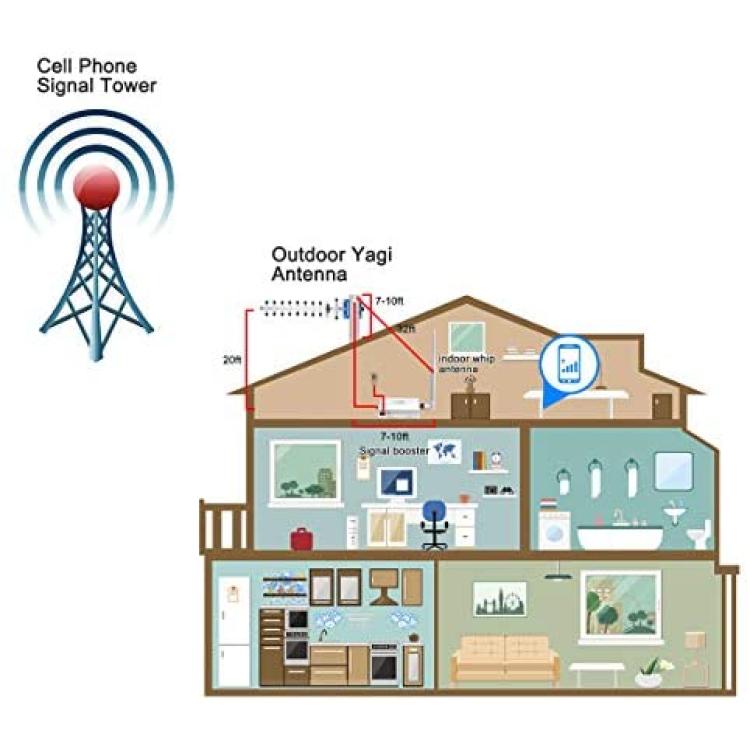

How does the signal booster kit work ?
1.Outdoor Antenna captures signal from Base Station
2.The 50ft coaxial cable will then transfer that signal into the Signal Booster Host
3.Booster boost signal to Indoor antenna
4.Indoor whip antenna transmit signal to your Phones.

Product Specifications
Model : FS-W17
Item Name : Cell phone signal booster-White
Brand : Fustar
Phone Brand :Any Brand of iOS /Android
Compatible Devices:Android/iPhone/Smartphone/Tablet PC/Windows Phone

Cell Service Provider: T-Mobile,MetroPCS,AT&T,Verizon
Operation Frequency:1700mhz of Band 4
Frequency Range :Uplink 1710-1755MHz, Downlink:2110-2155MHz
Booster Gain: Uplink:60±2dB Downlink:62±2dB (Max. 65dB)
AGC(Automatic Gain Control):Uplink:-45.00 Downlink:-56.00
Design:Modern and Fashion
Power Supply:110 Volt DC input,5V DC output
Emission Designator:3G/4G
Booster I/O Port : SMA-Female
Impedance: 50ohm
Operating Temperature:-13?~131
Indoor Antenna:Omni Whip
Outdoor antenna:Directional Yagi
Basic original Signal requirement :2-3 bars level at Outdoor

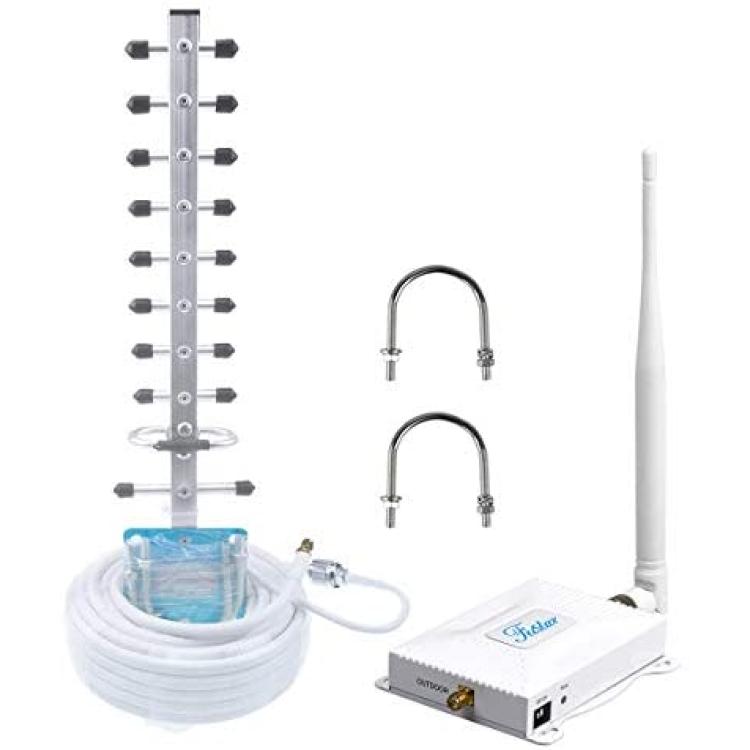

Package Contents
1x Cell phone signal booster for 1700mhz Band 4
1x Indoor Whip antenna
1x Outdoor Yagi Antenna
1x set of screws
1x User Manual
