GIMILINK SMA Coaxial Lightning Aresstor Surge Protector for Cell Phone Signal Booster GSM 3G 4G LTE Wireless LAN WiFi Antenna 50 Ohm 0-3GHz
Availability: In Stock
About this product
*Consumer Alert: Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device.
*Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888- CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCCs wireless microphone website at fcc.gov/cgb/wirelessmicrophones.
Description

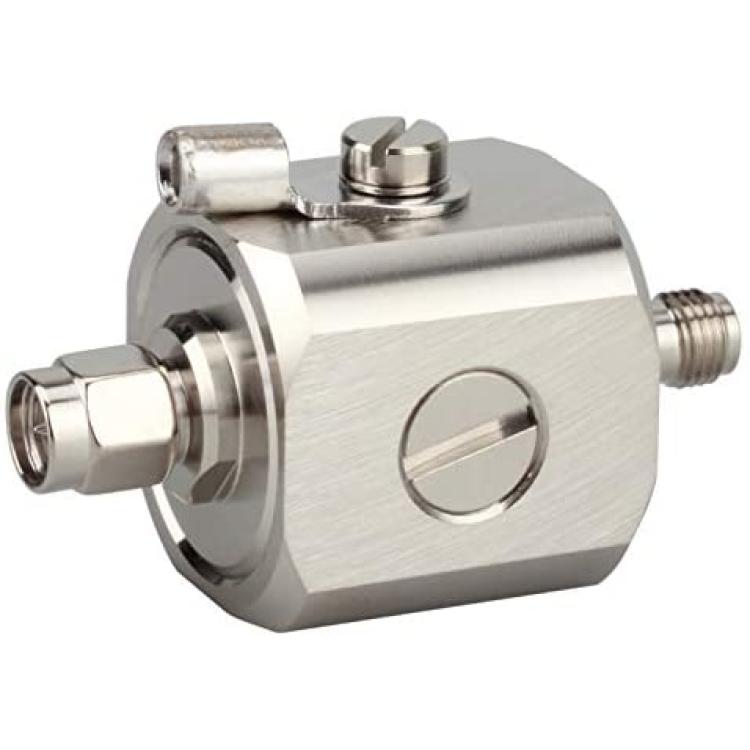

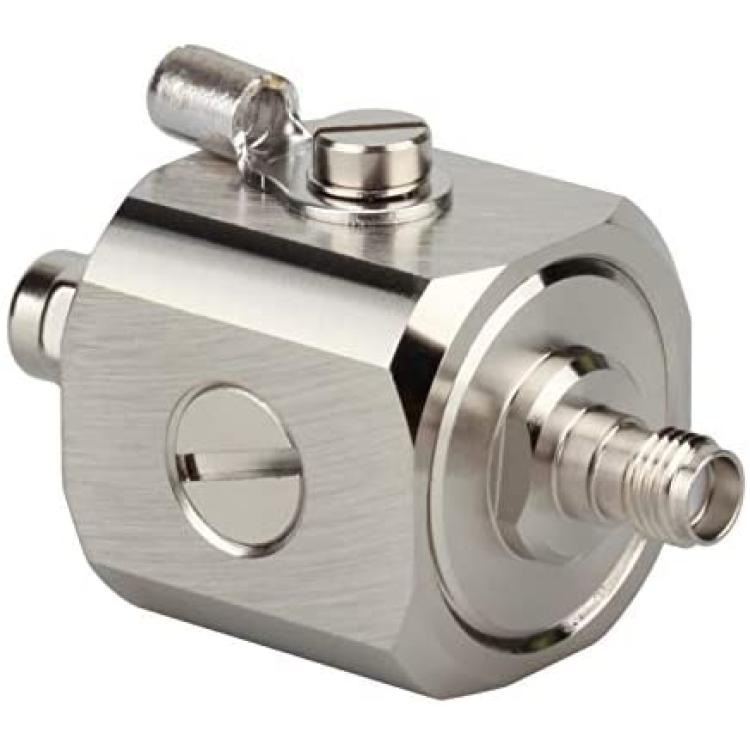

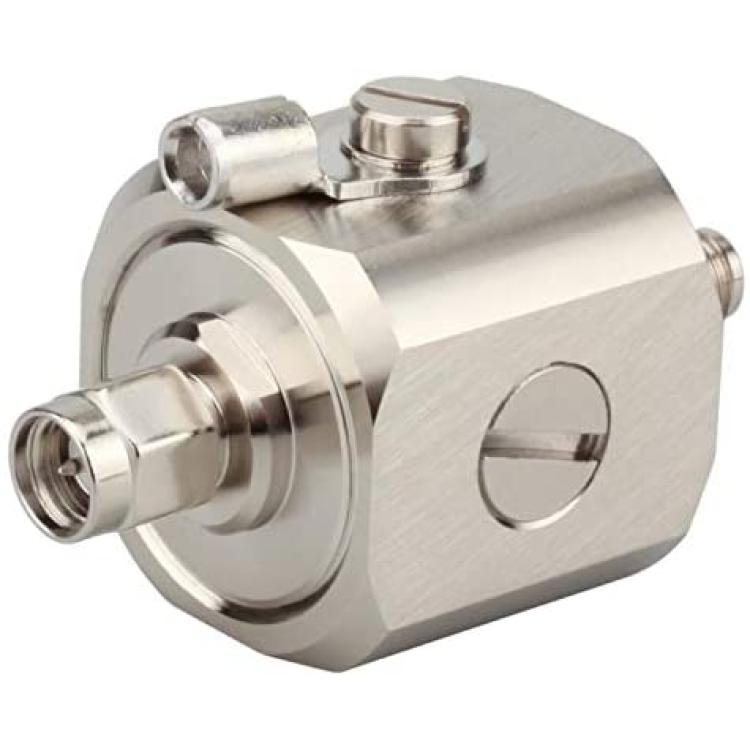

GIMILINK Coaxial Lightning Arrestor Surge Protector SMA Male to SMA Female 50 Ohm
-Protects cell phone signal boosters/amplifiers from power surges typically caused by lightning strikes to antennas mounted outdoors.
-Designed to be placed between amplifier and outside antenna cable connection, need to be grounded. (DC Pass)
-Ideal for Cell Phone Signal Boosters, WiMax Base Stations, 2.4GHz Wireless LAN WiFi Yagi antennas, WiMAX, FM, AM, VHF and UHF broadcast.
Electrical Specifications
-Input Impedance: 50?
-Frequency Range: DC - 3 GHz (0-3 GHz)
-Durability: ? 500 cycles
-VSWR: <1.2:1
-Insertion Loss: <0.15dB
-DC Breakdown Voltage: 90 V
-Gas Tube Impulse Breakdown Voltage: 700V
-Maximum Withstand Current: 5 kA
-Gas Tube Insulation Resistance: 1000M Ohm
Mechanical & Environmental
-Connector Types: SMA-Male to SMA-Female
-Connector Body Material: Nickel Plated Phosphor Bronze (QBe2-Y)
-Body Material: Nickel Plated Brass (HPb59-1)
-Insulator Material: PTFE
-Temperature Range: -40 to +85ºC
Installation Tips
-AWG 8/9/10 wire is suitable for grounding
Package Content
-1 x SMA Coax Lightning Arrestor Surge Protector SMA-Male to SMA-Female 50 Ohm ( 90V gas discharge element assembled )
