GIMILINK Coaxial Lightning Aresstor Surge Protector Protection 75 Ohm F Type Male to F Female for Satellite Cable TV 2G 3G 4G Cell Phone Signal Booster LTE Antennas

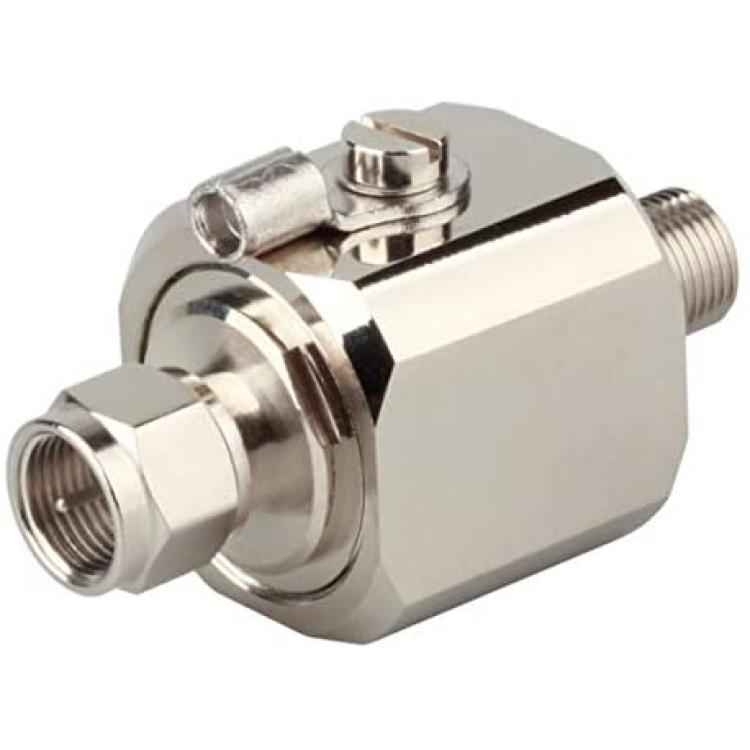

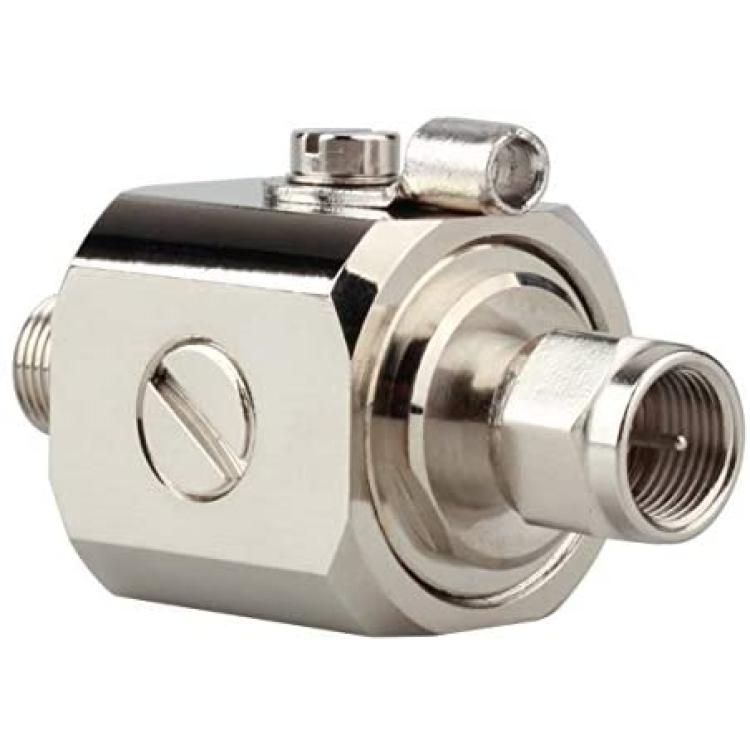

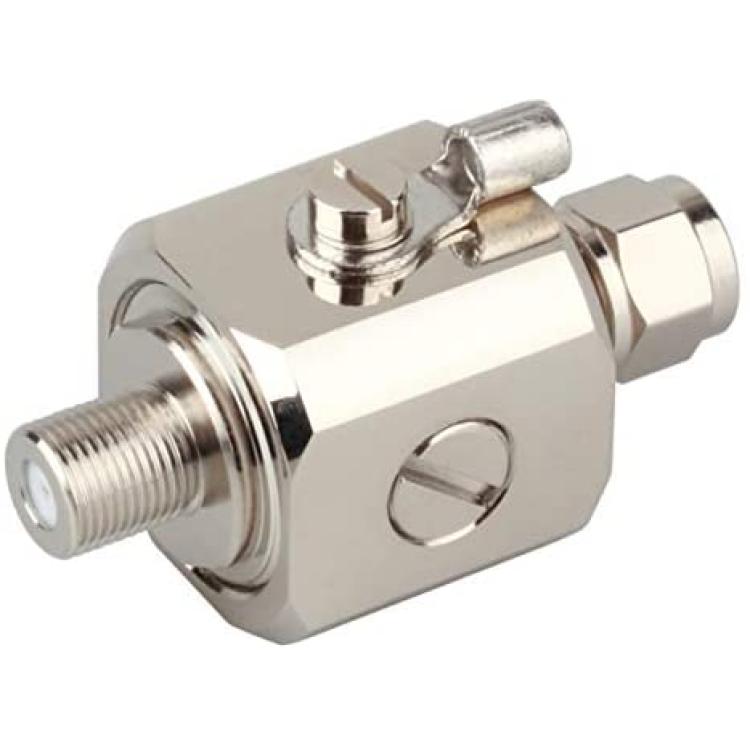

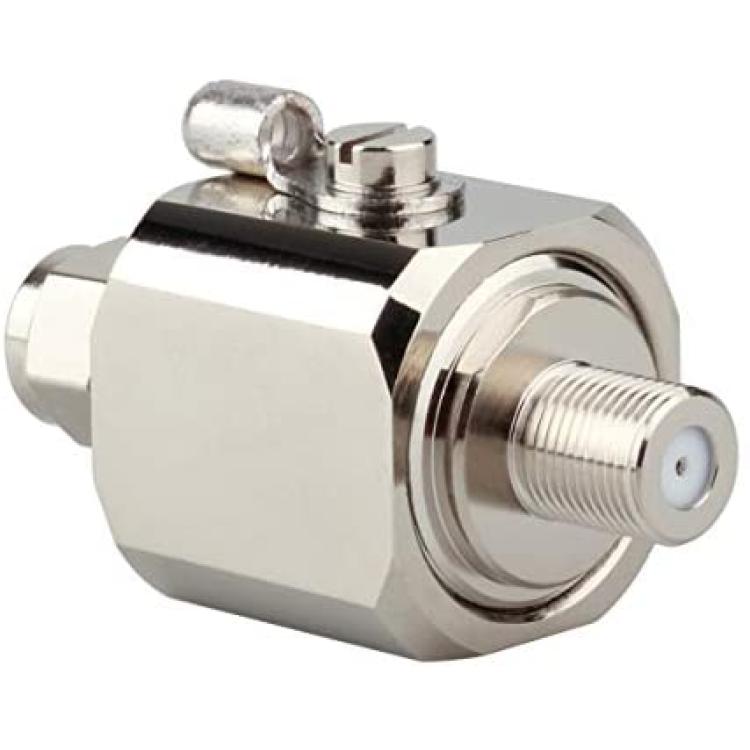

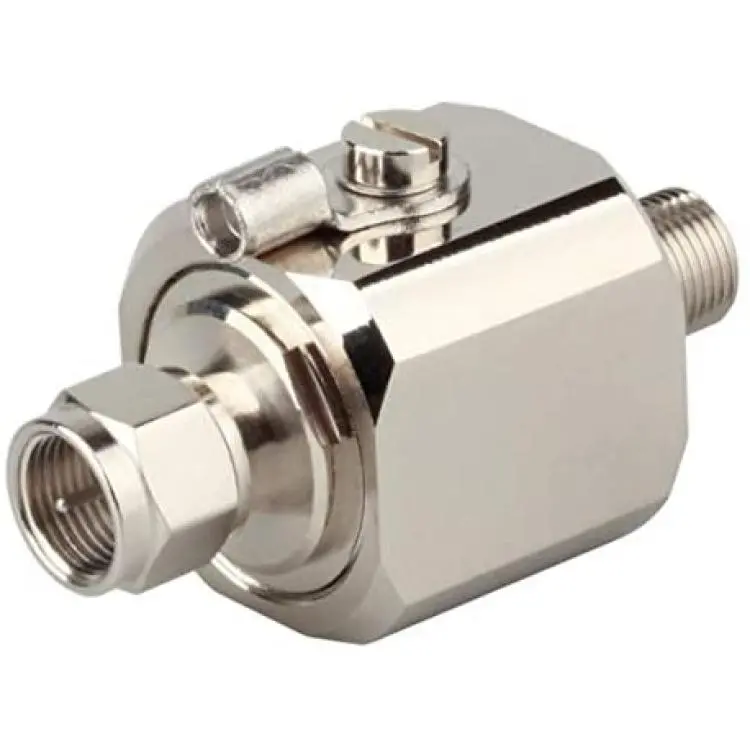

GIMILINK Coaxial Lightning Arrestor Surge Protector F Type Male to F Female 75 Ohm

-Protects cell phone signal boosters amplifiers from power surges typically caused by lightning strikes to antennas mounted outdoors.
-Designed to be placed between amplifier and outside antenna cable connection, need to be grounded. (DC pass design)
-Ideal for DBS or DTH digital satellite equipment including DIRECTV and DISH Network receivers.
-Also compatible with high-speed cable TV and Internet services.
-Easiy to be connected between two RG6 coax cables

Electrical Specifications
-Input Impedance: 75?
-Frequency Range: DC - 3 GHz (0-3 GHz)
-Durability: ? 500 cycles
-VSWR: <1.2:1
-Insertion Loss: <0.15dB
-DC Breakdown Voltage: 90 V
-Gas Tube Impulse Breakdown Voltage: 700V
-Maximum Withstand Current: 5 kA
-Gas Tube Insulation Resistance: 1000M Ohm

Mechanical & Environmental
-Connector Types: F-Male to F-Female
-Connector Body Material: Nickel Plated Brass
-Body Material: Nickel Plated Brass
-Pin Material: Tri-Metal Albaloy (Copper/Tin/Zinc) Plated Brass
-Insulator Material: PTFE
-Temperature Range: -40 to +85ºC

Installation Tips
-AWG 9/10/11 wire is suitable for grounding
-Easiy to be connected between two RG6 coax cables

Package Content
-1 x Coax Lightning Arrestor Surge Protector F-male to F-female 75 Ohm ( 90V gas discharge element assembled )
