Lintratek 4G LTE Signal Booster Verizon AT&T T-Mobile Band 4 1700MHz Cellular Signal Amplifier Repeater Kit Voice & Data for Home/Cottage/Office LCD Display 65dB FCC

[ATTENTION]:

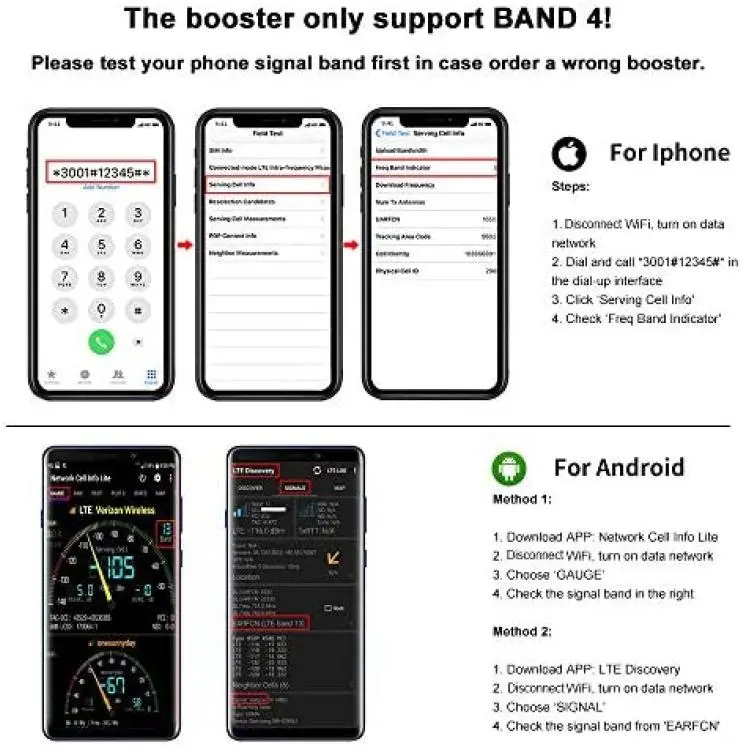

Please confirm your phone signal band first in case order a wrong booster. ( This model of booster can only improve BAND 4 signal. )

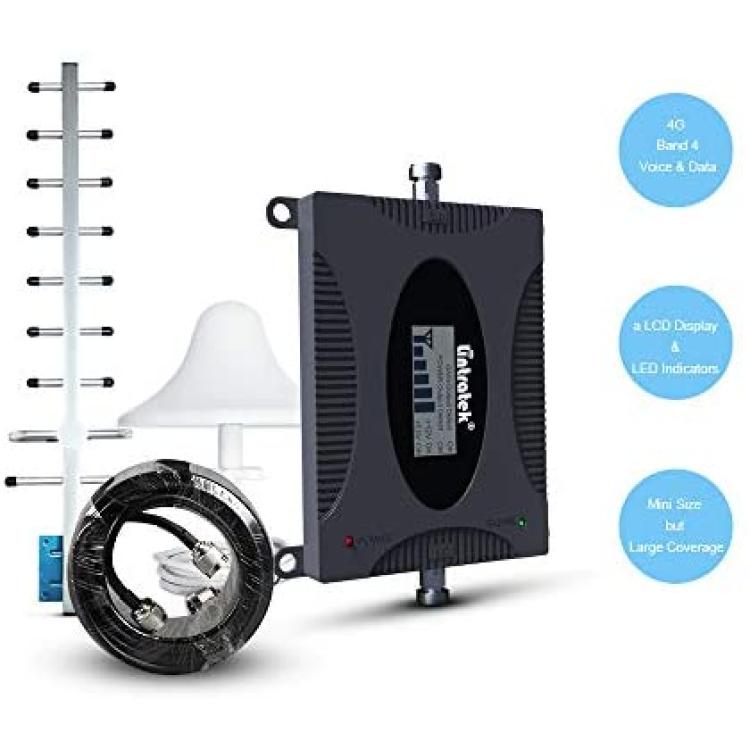

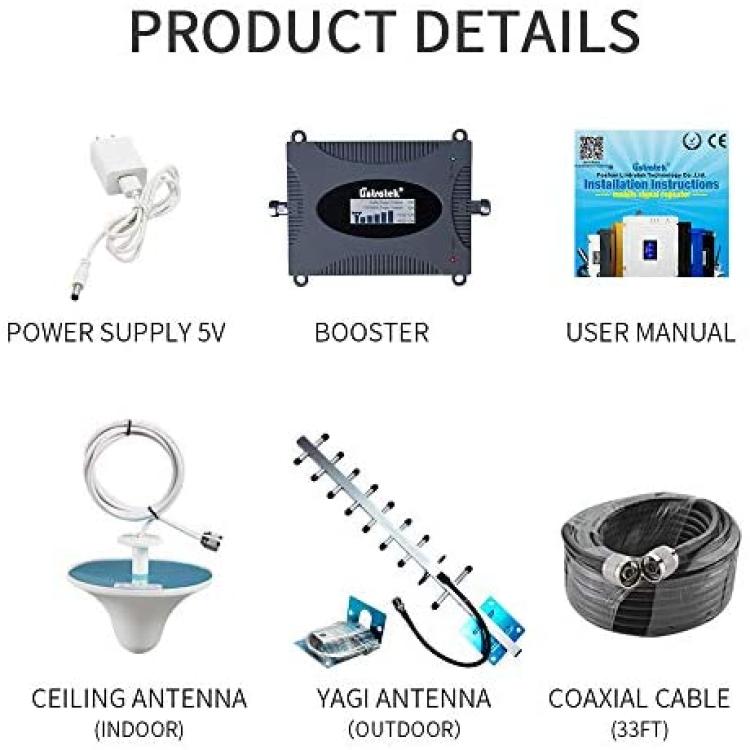

[PACKAGE INCLUDED]
1* Signal Booster
1* Yagi Outdoor Antenna
1* Ceiling Indoor Antenna
1* 33 FT Cable
1* US Standard Power Supply
1* User Manual



[SPECIFICATIONS]:
The Signal Booster:
Frequency Range: 1710~1755 MHz(Uplink)/2110~2155 MHz(Downlink)
Signal Band: band 4
Output Power:16dBm
High Gain: 65dB
Power Supply: AC?100~240V, 50/60Hz?DC?5V 1.5A
Operating Temperature: -10? ~ 55?

The Accessories:
Yagi Outdoor antenna:
Frequency Range:1710~2170MHz
Gain: 12 dBi
Mounting Kits: U bolts

Ceiling Indoor antenna:
Frequency Range: 800~2700MHz
Coverage: Omnidirectional (360°)
Mounting Kits: Fixed with Nut

Insulated Coaxial Cables:
Length: 33 FT
Color:Black


If you want to assemple other antennas or other lengths of cable, please contact us. It is available!!

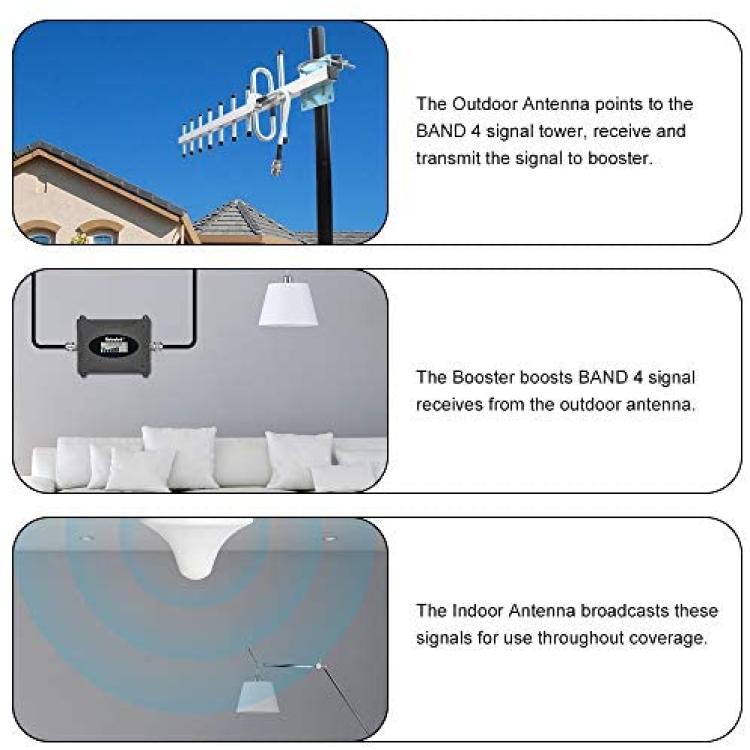

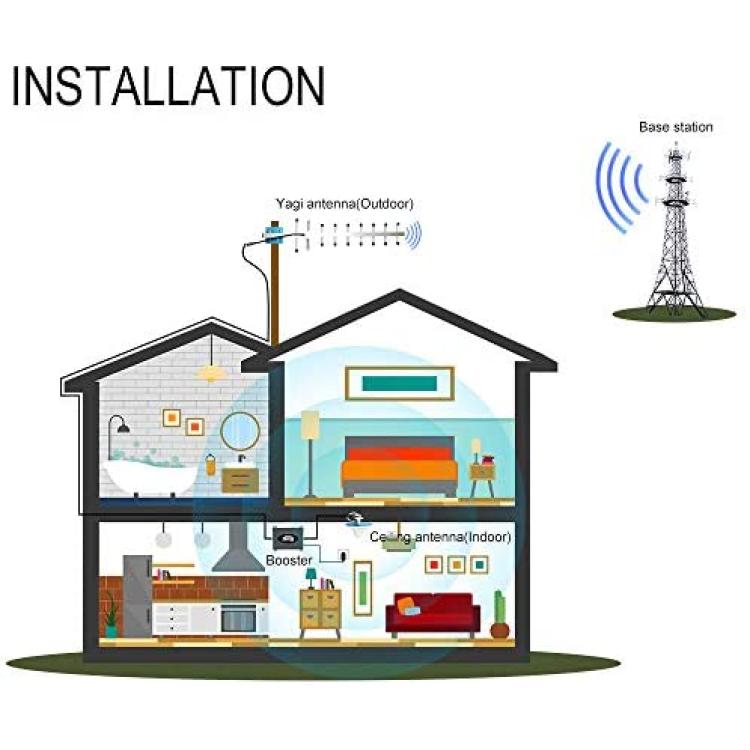

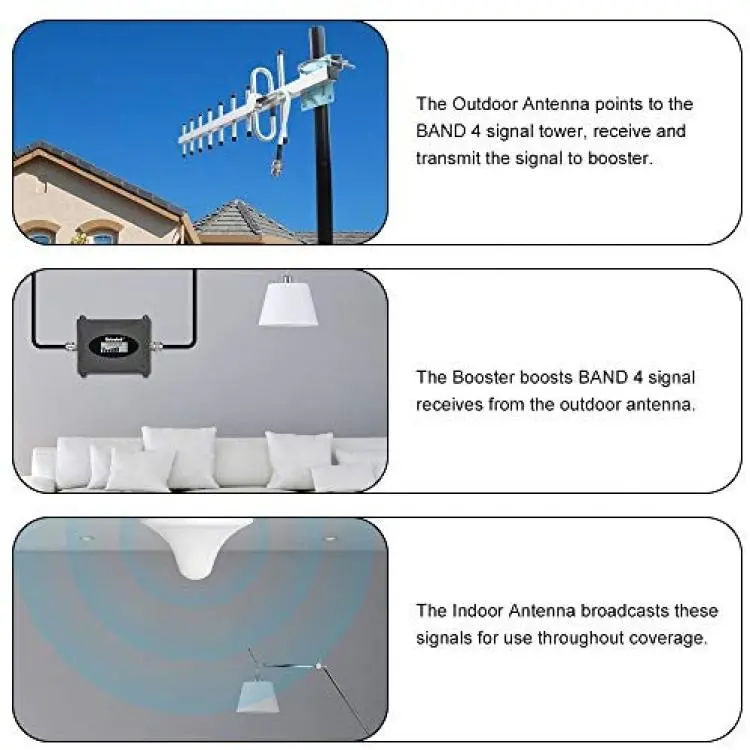

[INSTALLATION TIPS]:
1. The signal strength of the place of the outdoor antenna must be more than -90 dB;
2. The outdoor antenna must point to the band 4 LTE singal tower;
3. The distance between outdoor antenna and booster must be the longest (about 33 FT) and they cannot be in the same level, must be be separated by at least one physical thick wall;
4. The booster must be far away from windows and the glass doors.


[NOTE]: If you want to know more, please contact us and we will answer you within 24 hours.( *^_^* )
