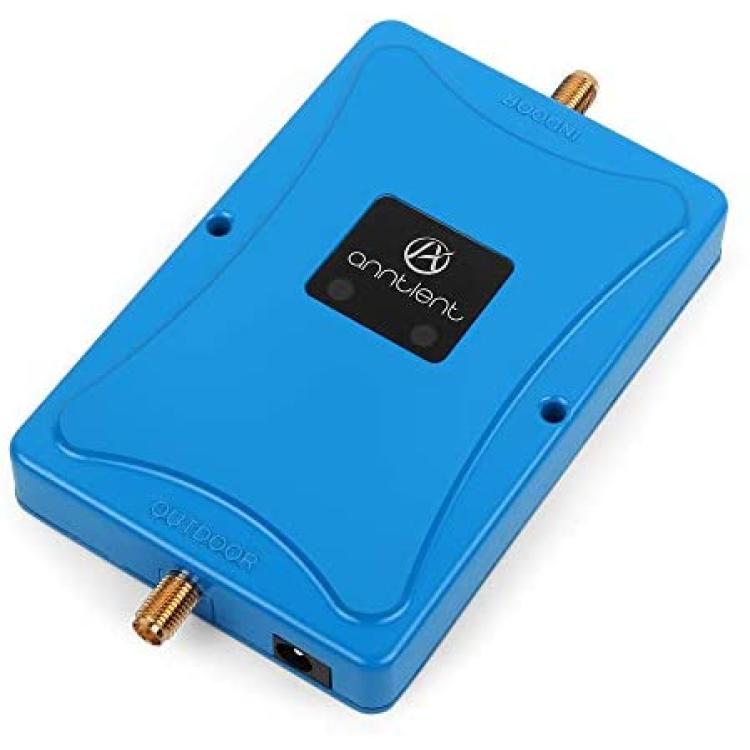

ANNTLENT Dual Band 700MHz Cell Phone Signal Booster Cellular Repeater Amplifier Boost 4G LTE Data for Home and Office

Technical Specification:

Dual Band 700MHz Band 12/13/17 Cell Phone Signal Booster for Home and Office (Without Antennas) Supports 2 Major US Carriers including: Verizon and AT&T, also supports T-mobile, US Cellular etc on Band 12, Band 13 or Band 17.

Operating Temperature:-25ºC~+55ºC

Max. Output power: 20dBm

Max. Gain (dB) : 65dB

I/O Port : SMA female on both ends

Power Supply: Input AC100~240V, 50/60Hz, output DC 5V 1A

Frequency Range:

1.Band 12/17: Uplink 698~716MHz; Downlink 728~746MHz

2.Band 13: Uplink 776~787MHz; Downlink 746~757MHz

Package:

1 * Dual band 700MHz Booster

1 * Power Adapter

Note:

1.This booster is only work for Verizon,AT&T and T-mobile 4g lte that operates band 12/13/17, please test your cell phone band before purchase by the methods below.

For Android phone: Download ’LTE discovery‘ ? choose ’Signals‘ ? check ‘EARFCN’

For iPhone: Dial No. *3001#12345#* ? click ‘Serving Cell Info’ ? check‘Freq Band Indicator'

2. Make sure you get no less than 1-2 bars signal outside, the booster can't create signal.

3. Note:

The booster can't work alone, please use an indoor antenna and an outdoor antenna connect to the booster. So the booster can receive signal from outdoor antenna, boosts signal, and transmit to the indoor antenna, finally broadcasts signal to your devices.

There should be a wall to separate the indoor and outdoor antennas, keep them 30ft distance and do not point at each other to avoid interference.
