GSM 850mhz Cell Phone Signal Booster AT&T Verizon Signal Booster Band 5 2G 3G 4G CDMA AT&T Cricket Verizon Cell Phone Booster Extender Repeater Cell Signal Booster Amplifier Improves 2G 3G Phone Calls

Cell Phone Signal Booster Mobile Signal Amplifier 850Mhz Band 5
Fustar Cell Phone Booster Repeater is designed for 2G 3G 850mhz GSM CDMA AT&T Verizon Cricket U.S. Cellular for all North American Users.This Cell Signal Booster kit aims to solve your poor network problem,it improves your 850mhz 3g 4g cell signal strength and enhances your 3g call quality.No more missed & dropped calls,and enjoy a faster Internet.The inside Antenna Coverage will be various base on the Outside Signal Level,Building Structure,Pannel Mounting Position,Outdoor Antenna Location and Height.Signal coverage max. up to 2000sq.ft

Signal Booster Specifics
Item Name: Cell phone signal booster
Model:B85
Cell Service Provider:Verizon AT&T, Cricket,U.S. Cellular
Network :GSM CDMA 2G 3G 4G

Operate Frequency:850mhz of Band 5
Frequency Range:Uplink 824-849MHz;Downlink 869-894MHz
Booster Gain: 60±2dB(Uplink/Downlink)
ALC(Automatic Level Control): ?30dB(Uplink/Downlink)
Power Supply:110 V input,5V output
Booster I/O Port:SMA-Female Both
Impedance:50ohm
Working Temperature:-13?~131?
Protection Grade:IP40
Indoor Antenna:Omni Whip
Outdoor antenna: Directional Yagi
Coaxial cable:50ft
Coverage range:1500-2000sq.ft
Rooms:2-4 rooms
Support Users:Multi-users

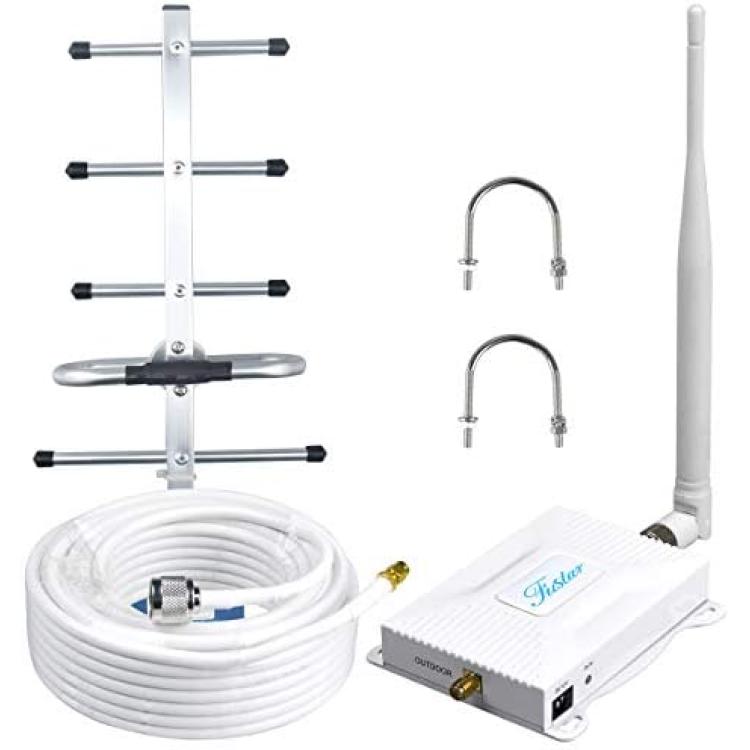

Package Contents
1xCell phone signal booster 850mhz Band 5-White
1xIndoor whip antenna
1xOutdoor Yagi antenna
1x50ft Outdoor 4D coaxial cable
1x Manual

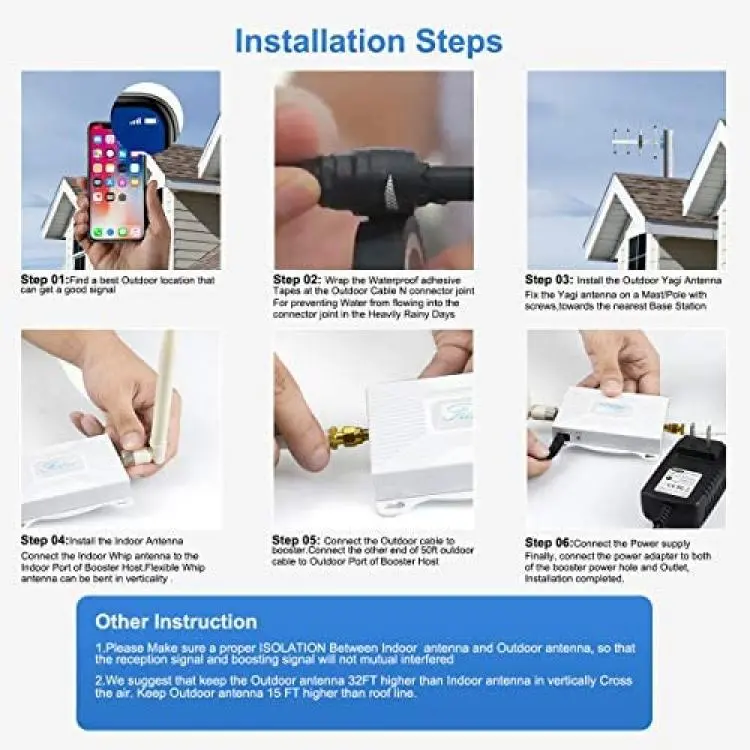

Attentions:

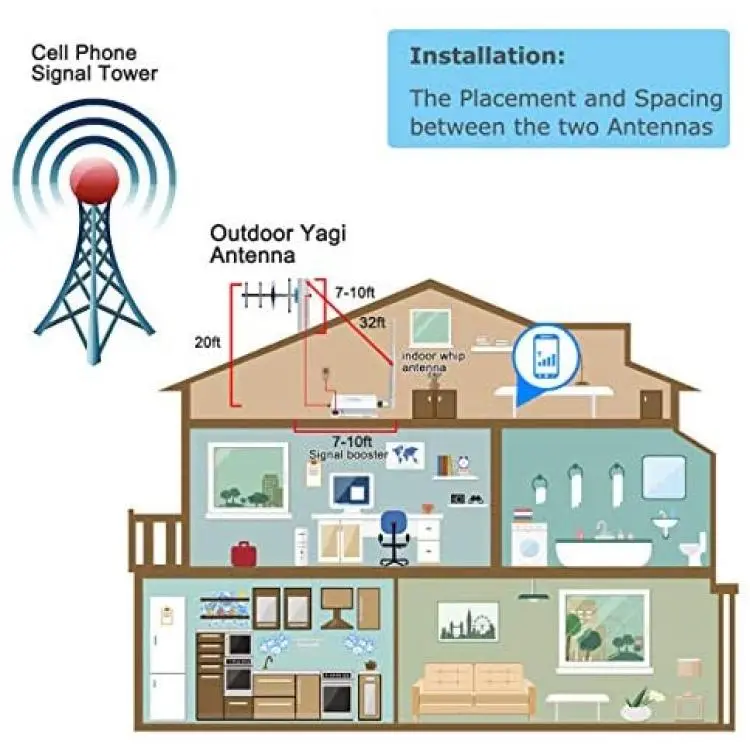

a)Mount the Outdoor Yagi antenna at the Best signal location at the outdoor,and Place the Outdoor antenna 10-15ft Above the Building(as high as it could)
b)Place Indoor antenna far away from opened windows(7ft at least)
c)Directional Yagi Antenna sould be Pointed to Cell Tower
d)Make sure 32ft separation distance between the Two Antennas.If not,The signals will be interfered
e)Basic Signal required:2-3 bars Outdoor
