DREAMGRIP Evolution 2020 PRO Universal Modular Transformable Rig System for Any Smartphone, Action and DSLR Cameras. Renewed Basic Phone Video Kit for Vlogging, Youtubers, Journalists or Movie-Makers

DREAMGRIP EVOLUTION PRO is the basic KIT with Evolution Rig and a set of accessories. Evolution Rig has been designed to assist creators in shooting the professional quality photo and video content with just a smartphone. The rig itself is truly universal and can accommodate unlimited number of photo/video accessories and extensions, which you will leverage to create your best photo and video shots. Evolution Rig is compatible with any smartphone, compact DSLR, compact VCR or action cameras, can carry lenses, external lights and microphones, power banks, or monitors. The rig can be handheld, mounted on tripods or attached to other supports with standard cold shoe or ¼” threaded connectors.

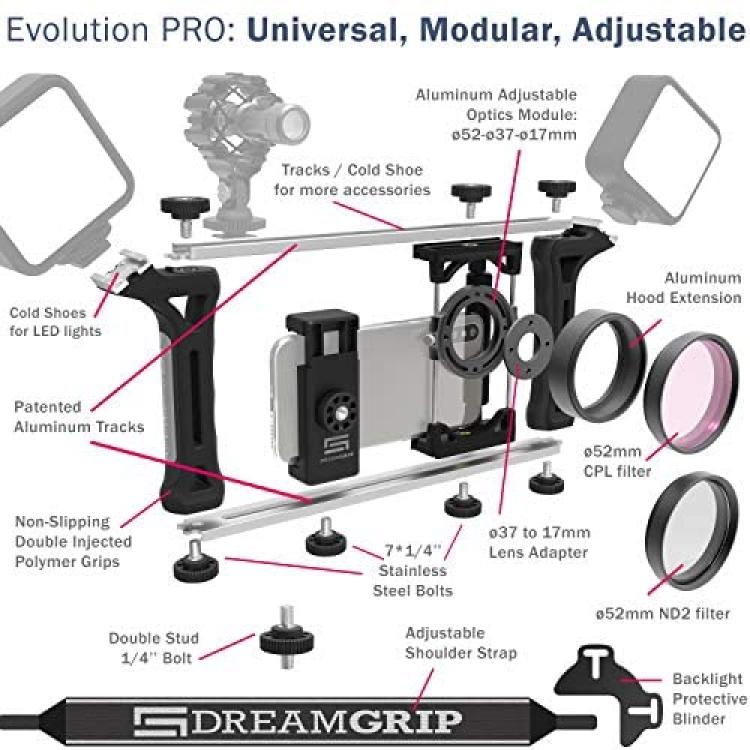

DREAMGRIP EVOLUTION PRO consists of several detachable accessories. Two patented Tracks on the top and bottom are tightened by ¼” Bolts to two moulded hand grips to form together a durable frame. The Grips provide a steady and confident hold thanks to double injected specially designed composite material. Each grip has also a tilted platform on top with a standard cold shoe mount to accommodate external lights with maximum distance one from the other for better lightening of the shooting object and to reduce shadowing. Both cold shoes and Tracks are made of lightweight high grade aviation aluminum.

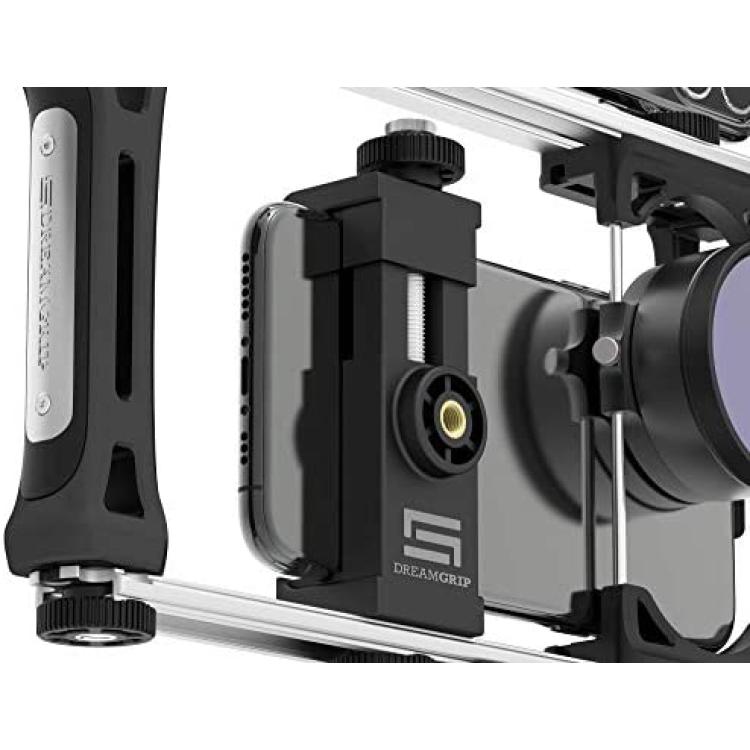

The Rig System also features a universal Clamp holder to fix a smartphone securely. Once a smartphone is inserted you only need to align it with universal Optics Adapter. The adapter can is movable inside the frame and to be fixed after aligning to a particular phone camera position. Then the Lens Cup position should be adjusted by sliding up or down on metal bars. When phone camera is in the very center of Lens Cup eye – tighten it with two 1/8” screws. Both screws and bars are made of the best quality stainless steel.

The Lens Cup is aluminum alloy casted and has standard threads for optics of 37mm and 52mm. You may use any hoods, filters or lenses of the said diameter as well as connect other diameters with adaptors (not included). Although Optics Adapter system features original aluminum 37-17mm adapter to accommodate any of DREAMGRIP VISIO lenses or other brands smartphone lens with 17mm connection thread.

Once Optics Adapter is fixed and phone camera aligned to its center – move special Pushing Bar at the back side of adapter to securely lock the phone. For more details and instructions for installation you can download User Manual or brows it here.

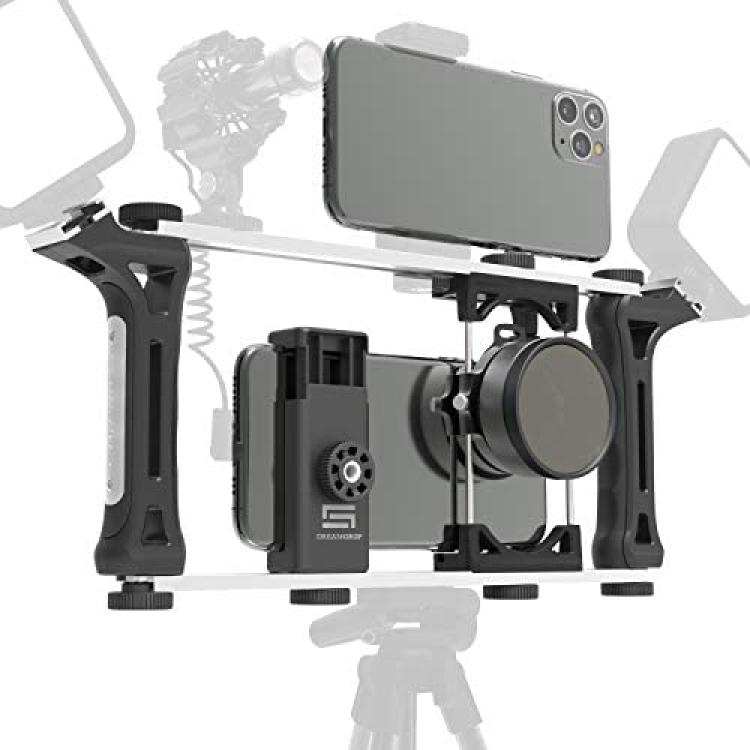

Either Bolts or Cold Shoe type locks will conveniently and securely fix the any required accessories and extensions at a chosen position along top and bottom tracks. Each track can carry all kinds of professional equipment you may need, including monitors, extra cameras, lights, displays, microphones, power banks, etc. The lower Track can also be fixed on a Tripod, Dolly or any other camera support gears.

Evolution Pro KIT also features two optical filters, hood, blinder, and shoulder strap in the retail gift box.

Universal Optics Adapter features 52mm and 37mm threads, and also 37-17mm step down adapter. Any of two filters from the KIT could be screwed in 52mm standard thread of the Lens Cup.

CPL filter will help you to control the reflections on the water, glass, and other surfaces as well as contrast during sunny day and a few other effects. The second included filter is ND2, and it is useful while shooting with manual setting camera mode to cut the light penetration by half.

Any of the two filters can be also screwed on the 52mm Hood. The hood is useful to protect camera from side lights to prevent undesired reflections. To prevent reflections from back lights use Blinder (for smartphones with corner camera location, like Apple, Huawei and others.)

For more details please refer to User Manual, check F.A.Q. and video, or ask us directly at the official website.

IN-BOX

1.DREAMGRIP EVOLUTION RIG (assembled) 2.Adjustable strap 3.Moulded strap stoppers (3 types) 4.CPL filter 52mm CPL w/pp protection bag 5.ND2 filter 52mm ND2 w/pp protection bag 6.Black paper folded Filter Box 7.37-52 anodized aluminum vent hood 8.Black paper folded Hood flip Box 9.Double coated light absorbing View Blinder 10.Blinder 1/8? standard stainless steel Bolt 11.Blinder 1/8? stainless steel Bolt w/silicon gasket 12.Spare (8th) 1/4? Original Bolt 13.1/4? Double Bolt w/two silicon gaskets 14.Universal Retail Gift box w/EURO Hook 15.Super cover (with local languages)

The Modular Transformable Universal video Rig for any iPhone, Samsung, and other Android OS smartphone models - the set with adjustable Optics adapter for 17mm, 37mm and 52mm threaded lenses, with ND2 and CPL 52mm optical filters, 52mm hood, and more accessories included - compatible with all professional video\photo accessories with cold shoe and/or standard 1/4" thread.

DREAMGRIP Evolution is the most advanced contemporary universal smartphone video rig system designed for any Creator regardless the level of his/her previous shooting experience to assist in mounting and connection of external video/optical/sound/light accessories and extensions to empower the production of professional quality cinematic visual content with just a smartphone camera.

The Evolution PRO video rig set is the best choice for a videographer having already a bunch of lights, microphones, and other professional equipment in his/her disposal. The set includes two molded anatomical grips and two high-grade aluminum tracks to form the rig frame, phone clamp holder, the Optical Module with external lens connectors, 52mm hood, ND and CPL 52mm filters, backlight blinder, shoulder strap, and a number of different screws to enable secure and tight connections of rig modules and other external accessories.

The original Optical Module (included) features detachable 37-17mm threaded adapter to provide compatibility with a wide range of eternal lenses (17 and 37mm thread), optical accessories including DoF adapters (37mm thread), filters and hoods (52 and 37mm thread), and others.

All Evolution PRO video rig parts and elements can be connected in a number of different ways to build a custom setup for each particular task and shooting technics. That is why the Evolution Rig System itself is also a transformable constructer set that is yet compatible with the most of other photo/video extensions and supports including dollies, moving platforms, jibs, pan-stabilizers, grips, and many others.

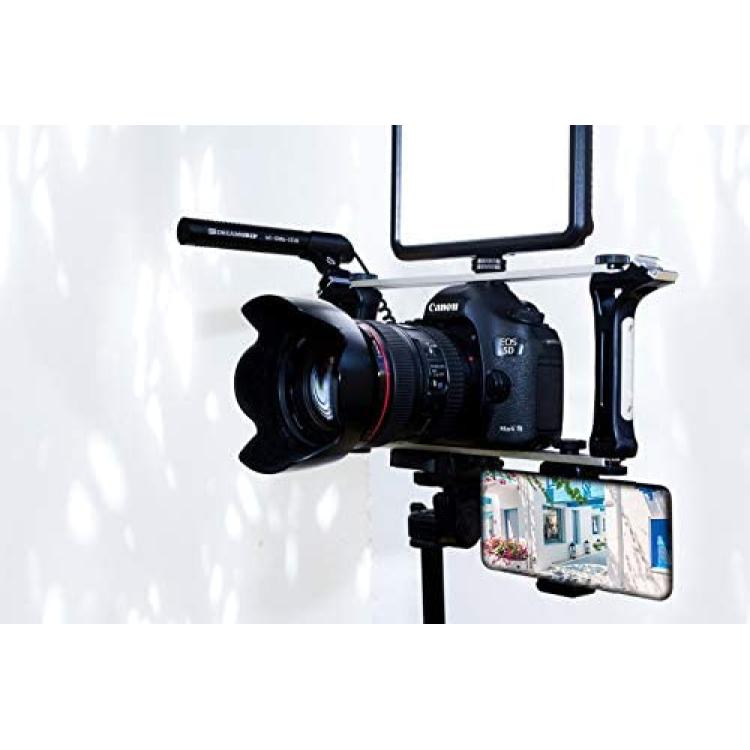

DREAMGRIP Evolution is 100% compatible with all smartphones currently available including solo, dual, and multi-camera models. This universal compatibility achieved thanks to the patented original construction that allows adjusting position of every element or module to be aligned easily with a phone of any size and camera(s) location.

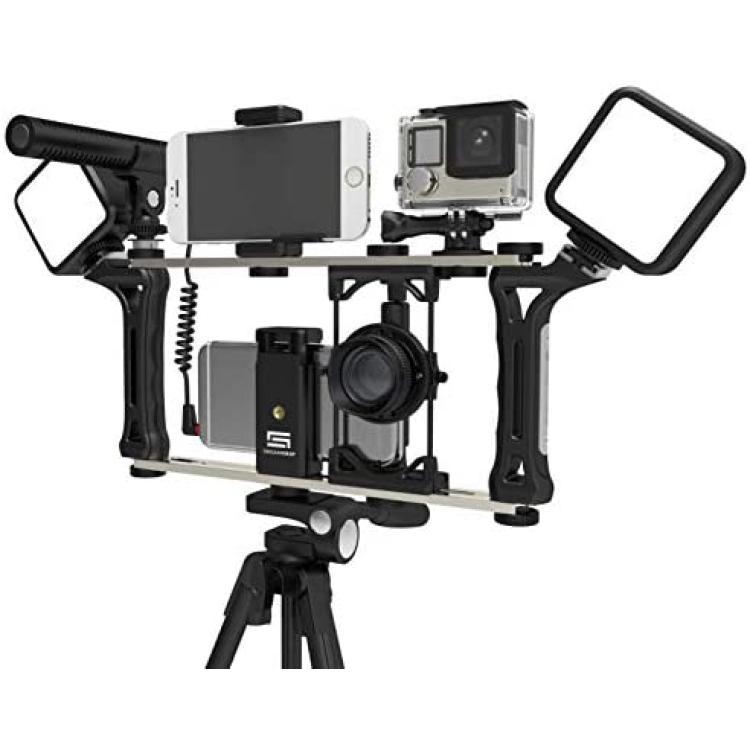

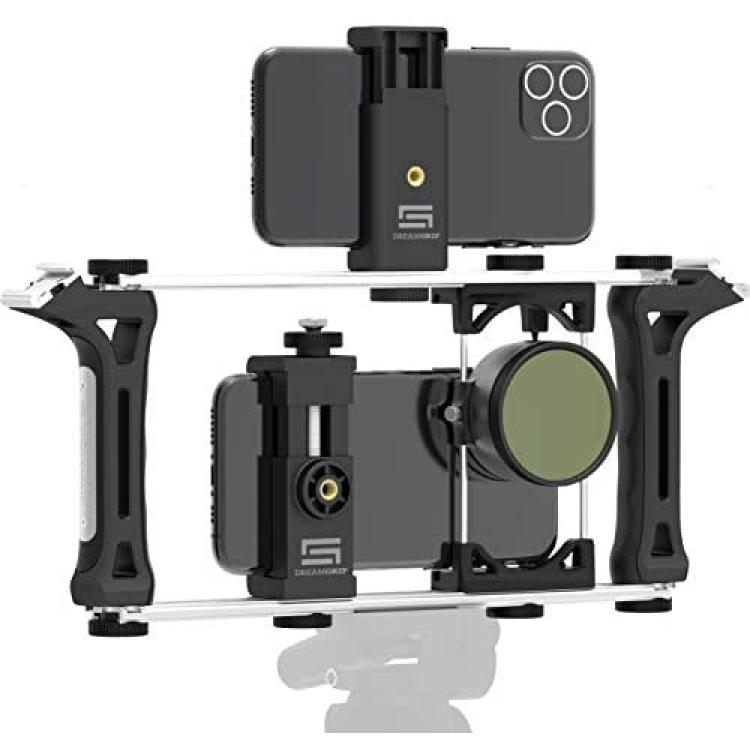

The Evolution Smartphone Video Rig System can simultaneously carry several phones and/or compact cameras together with a plurality of accessories like external lights, microphones, extra monitors, and optics like lenses, filters, and others. And with all the items mounted on it - the Rig will keep the extraordinary weight balance, can be conveniently handheld, mounted on a tripod or securely attached with extra connection means to almost any surfaces and objects indoor and outdoor. It can be fixed on a bike, inside/outside a car, yacht, or anywhere you need the camera to be placed , but for that additional accessories and products from DREAMGRIP or other suppliers may be needed. The Evolution PRO set has the best unbeatable P/Q ratio if one will compare it with any alternative solutions on the market worldwide.
