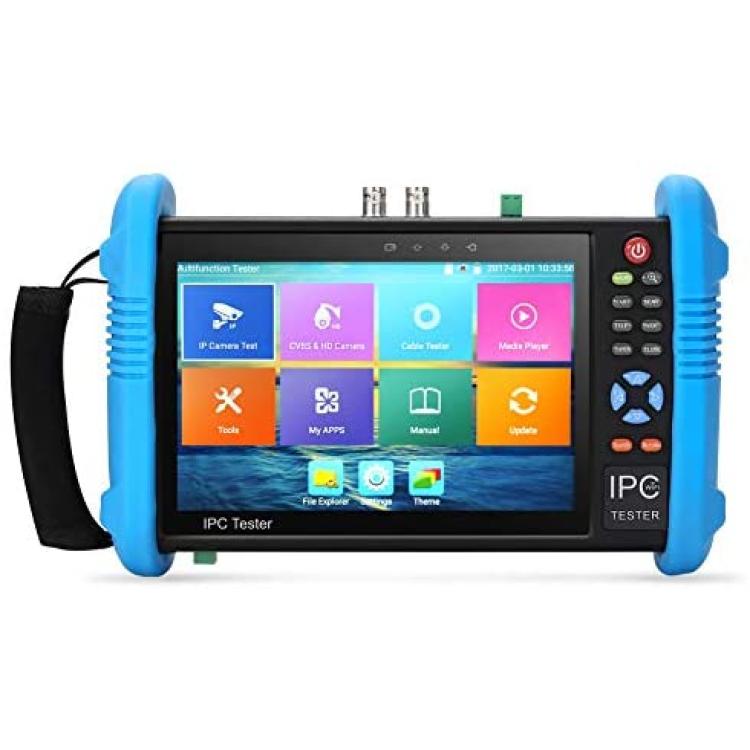

Koolertron Upgraded 7 inch IPS Touch Screen H.265 4K IPC-9800 Plus IP Camera Tester CCTV CVBS Analog Tester Built in WiFi with POE/WIFI/8G TF Card/HDMI Output/RJ45 TDR/Dual Window Test/Firmware

Note:

Does not support HDMI in,Cable trace and Video level meter

Does not support AHD,CVI,TVI,SDI,HD coaxial camera.

After receiving the product,open the back battery cover and take out the insulation sheet first,then you can use the lithium battery normally.

Features:

IP & CVBS camera test ,PTZ controller

Rapid video, just by one key to detect all network cameras and auto display

RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc

HDMI signal output, support 1080p display image, record and snapshot

CVBS loop test, the tester send and receive color bar generator signal ,to check BNC cable

Traffic monitoring of the tester "LAN port", display network port or WIFI connection real-time upload and download speeds and other network parameters

Customers self update software, you can install apps with android version, such as Skype, wechat etc

4K video files and MKV/MP4 media files play

8GB SD card including

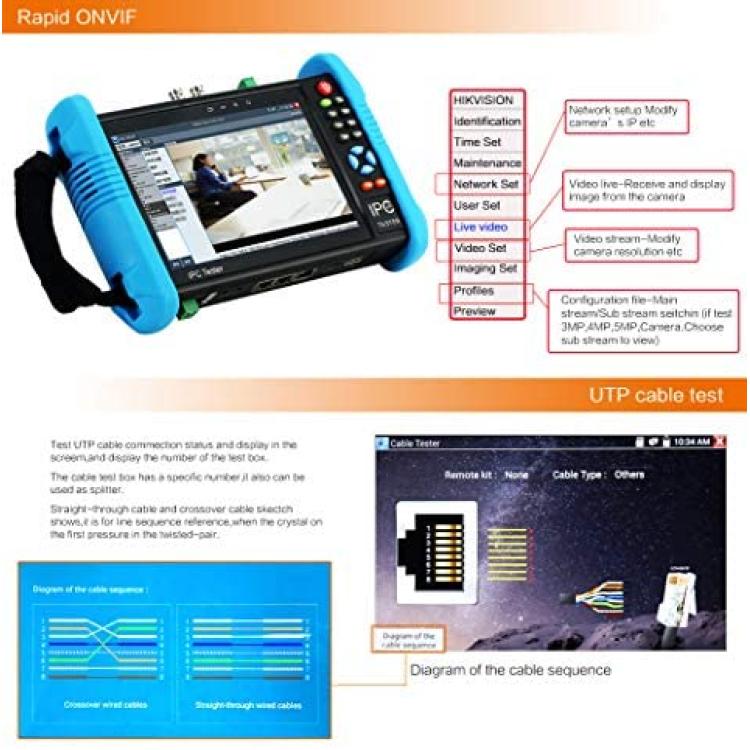

ONVIF camera test, support 2592*1520, Network PTZ controller (ONVIF)

PoE DC48V power output, Max power 24W,12V /2A power output/5V 2A power output, as a power bank

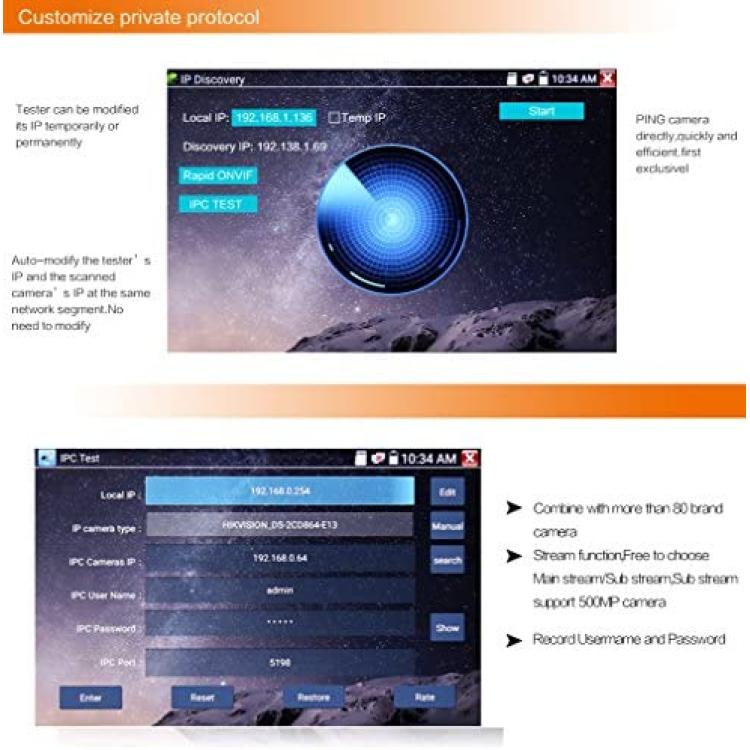

IP discovery, it can auto-scan the whole network segment IP, and auto-modify tester’s IP address

Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator

POE voltage measurement, PING test, IP address scan, port flashing etc

Shortcut button, drop-down menu , can select PoE power ,IP setting, WLAN switch, HDMI IN functions etc in any interface

Supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG

Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator

Audio in /out , support record and save the audio/LED lamp, calculators, music players and other application tools

7.4V/5000mAh Lithium Ion Polymer Battery, after 6-7 hours charging, working time lasts 10 hours

Package Included:

1 x IP Camera Tester

1 x Power Output Cable

1 x RS485 Test Cable

1 x Audio Test Cable

1 x BNC Cable

1 x Cable Tester Box

1 x 7.4V/5000mAh Lithium Ion Polymer Battery

1 x Power Adaptor

3 x Straps

1 x Storage Bag

Built-in User Manual
