Westshine 16CH 5MP DVR H.265 CCTV Security Digital Video Recorder,4K output/P2P Cloud/Motion Detection Email Alert/Remote Smartphone Access-Fits for 5MP/4MP/1080P AHD/TVI/CVI/IP Camera(NO HDD)
Availability: In Stock
About this product
*【Ultra high resolution 5MP】: XVI/AHD/TVI/CVI/CVBS/IP 6 in 1,This 16 channel 5MP digital video recorder support 5MP/4MP/1080P XVI/AHD/TVI/CVI/IP/960H CVBS Camera；VGA and HDMI dual output, HDMI max 4k output,VGA max 1080p.
*【H.265+ HEVC】: Support H.265+ high efficiency video coding, save bandwidth for 70% than H.264, increase storage and transmission efficiency(1x HDD-recommended WD Purple, max 6TB).

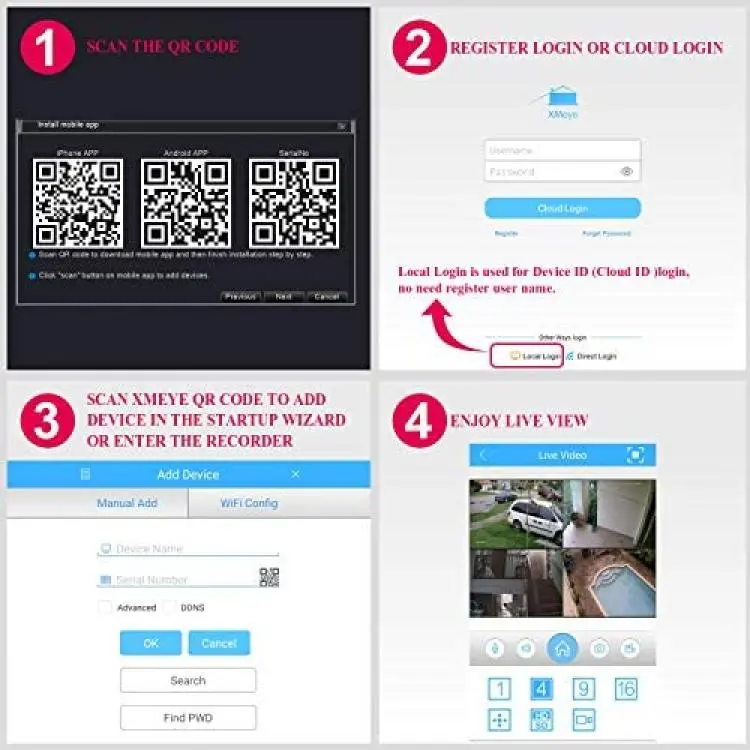

*【P2P Remote Access】:Support P2P/Cloud function for Remote Access, CCTV DVR can be linked through the internet without any complicated port mapping. Download the Free "XMeye" App and get the DVR device ID, one step to remote access, Simple remote monitoring on smartphone, tablet and computer
*【Email Alert with snapshot】:Instant Motion Detection Email Alert to Let You Know Exactly What Happened.
*【Easy Operation】:DVR start with Setup Wizard, guide you to configure your DVR step by step.1 Year Warranty and Free Life Time Tech Support. (If you have any technical questions, please feel free to contact us)
Description

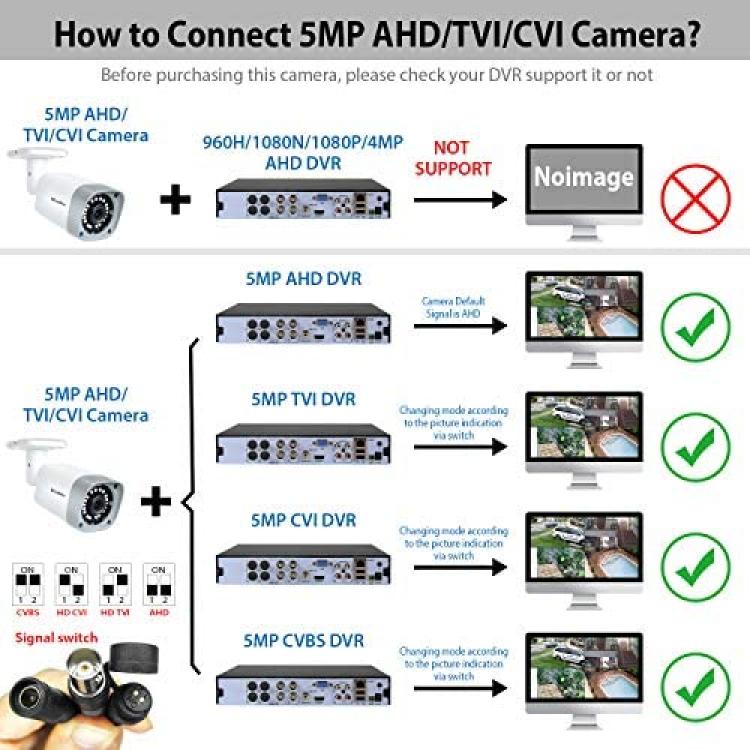

This 5MP 6 in 1 DVR supports 5MP/4MP/3MP/1080P XVI/AHD/TVI/CVI/IP/960H CVBS cameras. Higher resolution up to 5 megapixels, surpass traditional 1080P
Key Features:
* 5MP megapixel (2592X1944) shows crisp image
* Hybrid mode support 8pcs 4MP AHD cameras and 8pcs 4MP IP Cameras simultaneously
* Advanced H.265+ video compression technology
* Smart search playback to easy locate incident videos
* Motion-triggered email alert with snapshot
* P2P easy remote access on mobile devices
Specifications:

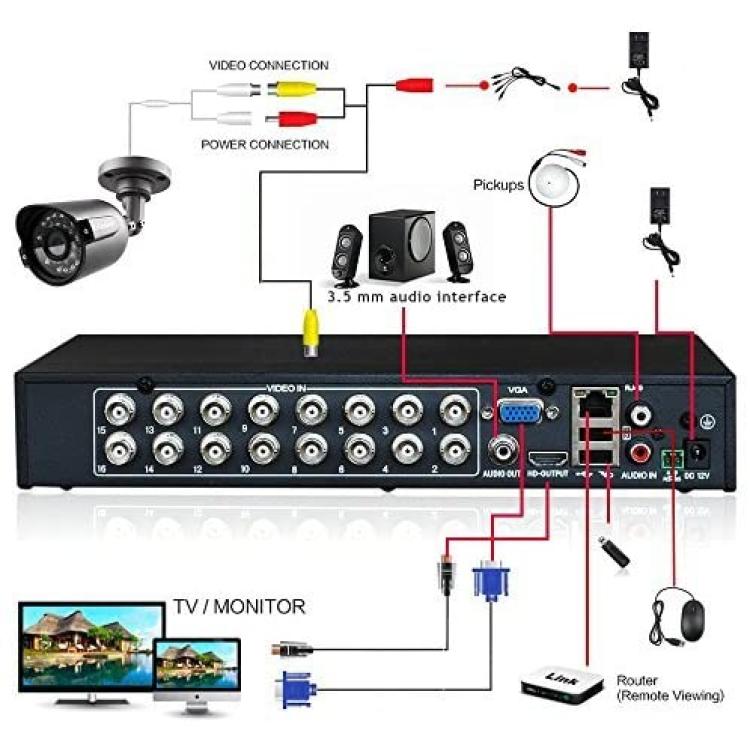

Video input: 16ch BNC interfaces
Video output: 1ch VGA and 1ch HDMI
Audio input/output: 2ch in/1ch out
Preview: 16ch*[email protected](6 in 1)/16ch*4M@15fps(6 in 1)/16ch*3M@18fps(6 in 1)/16ch*1080P(6 in 1)
Record Resolution& Frame:16ch*5M@6fps(6 in
1)/16ch*4M@8fps(6 in 1)/16ch*3M@10fps(6 in 1) / 16ch*1080P@12fps(6 in 1)/16ch*720P(6 in 1)
Playback quality: 4*5M@6fps(6 in 1)/16*4M@8fps(6 in 1)/16*3M@10fps(6 in 1) / 16*1080P@12fps(6 in 1)/16*720P(6 in 1)
Record Mode: Manual, Alarm, Motion detection, Timing
Back up mode: Network, USB portable HDD,USB DVD-RW
1x SATA HDD interface(Max 6TB)
1x RJ-45 10M/100Mbps Network interface
2x USB 2.0 interface
1x RS485 PTZ Camera interface

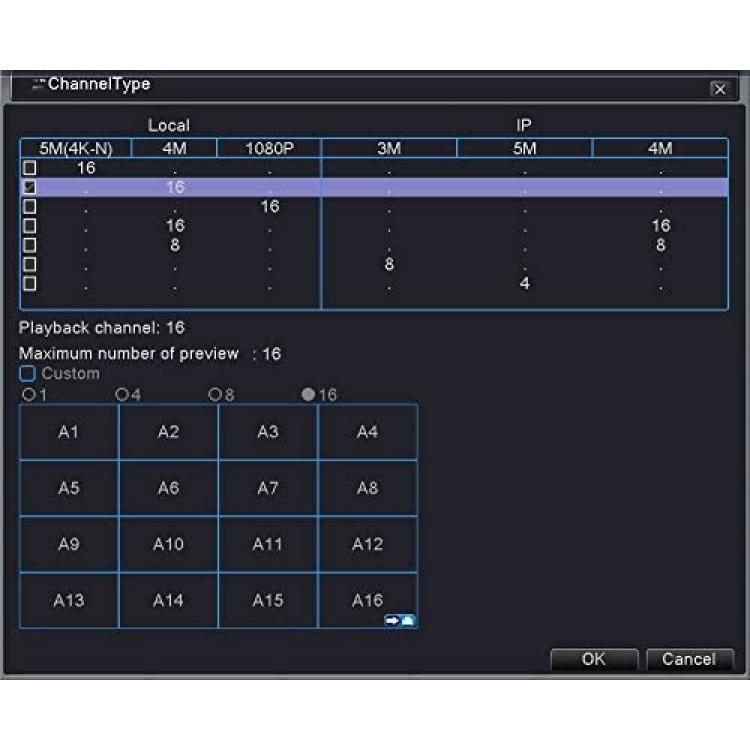

Hybrid Modes
DVR mode: 16ch 5MP/4MP/1080P
Hybrid mode: 8ch 4MP AHD+8ch 4MP IP
NVR mode: 8ch 3MP,4ch 5MP IP

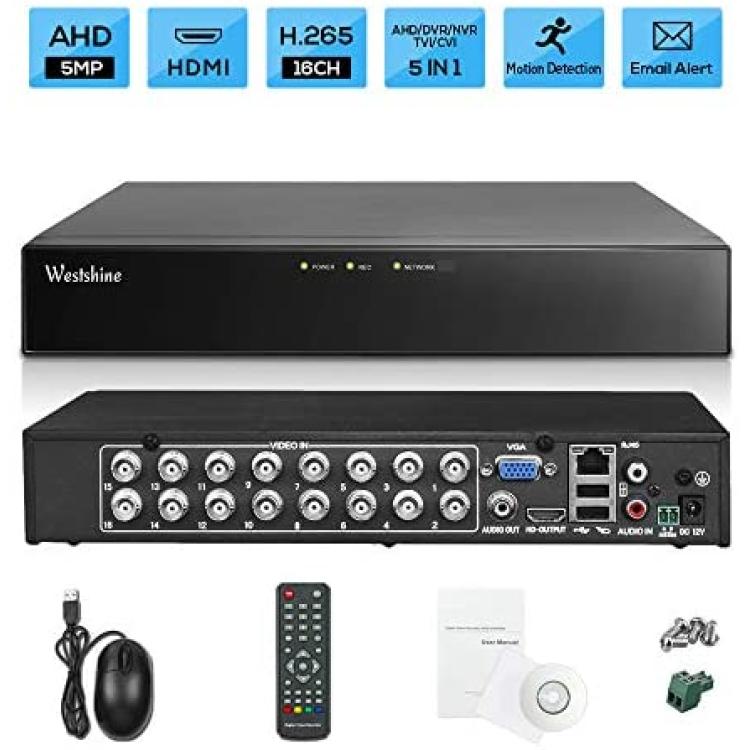

Package
1xCCTV DVR(No HDD)
1xDC 12V/2A Power Supply
1xMouse
1xRemote
1xManual
Notes
1. For safety purpose, please change DVR default password
2.Any questions please contact us
