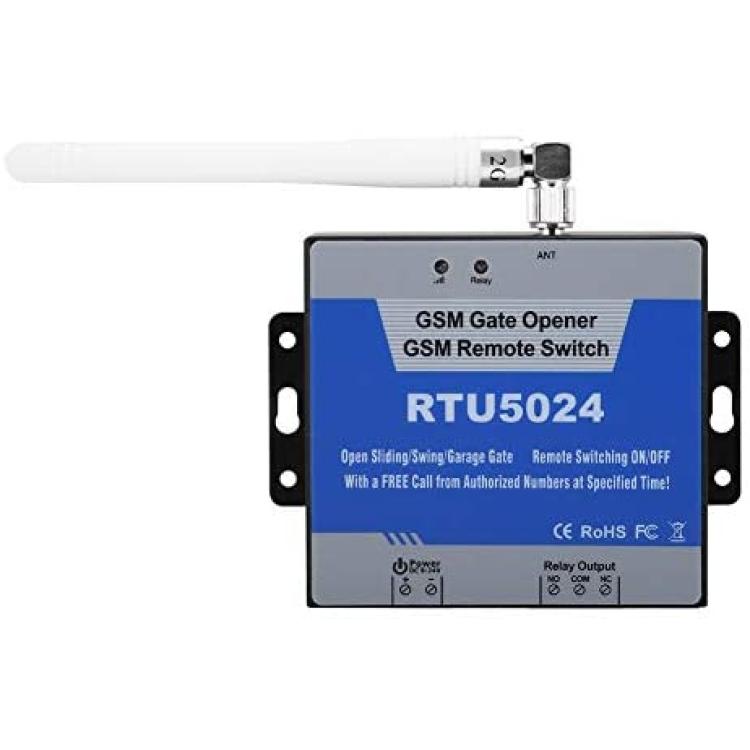

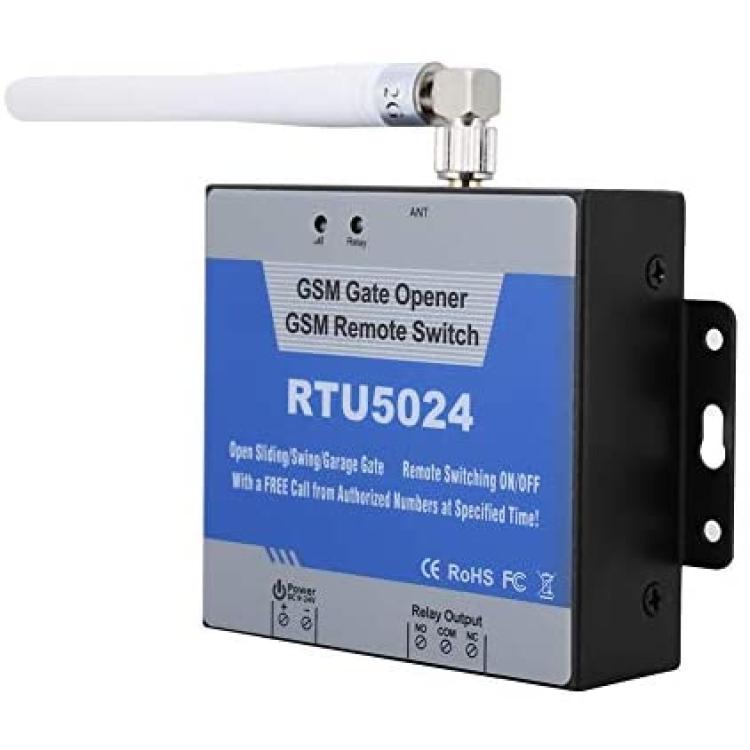

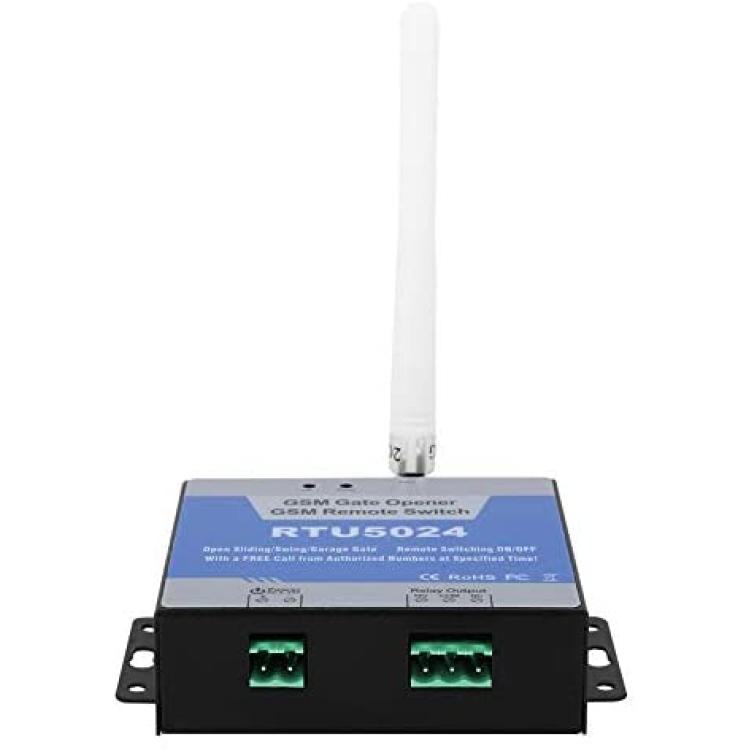

GSM Gate Opener, RTU5024 GSM Mobile Phone Access Controller Remote Control Switch SMS Door Control

Features:

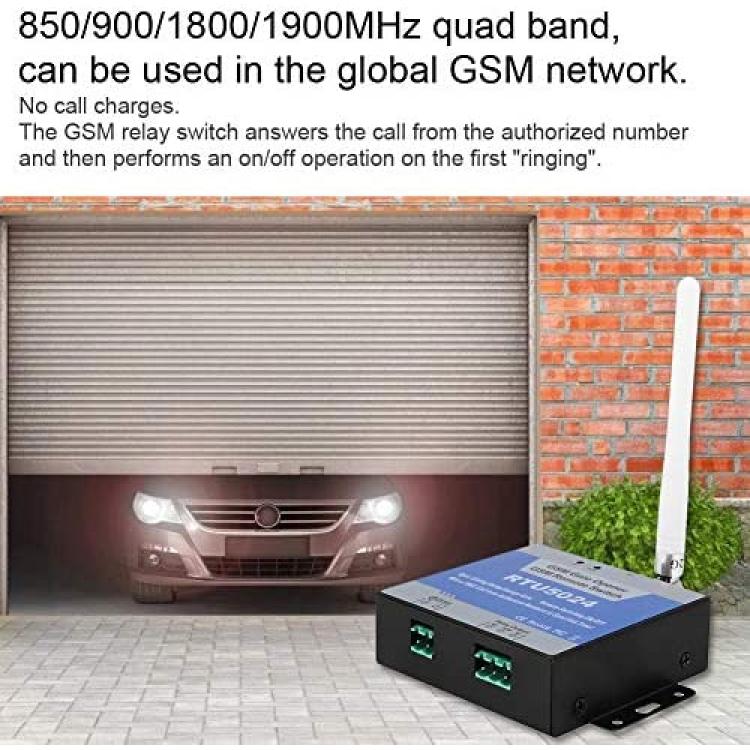

1. 850/900/1800/1900MHz quad band, can be used in the global GSM network.
2. No call charges. The GSM relay switch answers the call from the authorized number and then performs an on/off operation on the first "ringing".

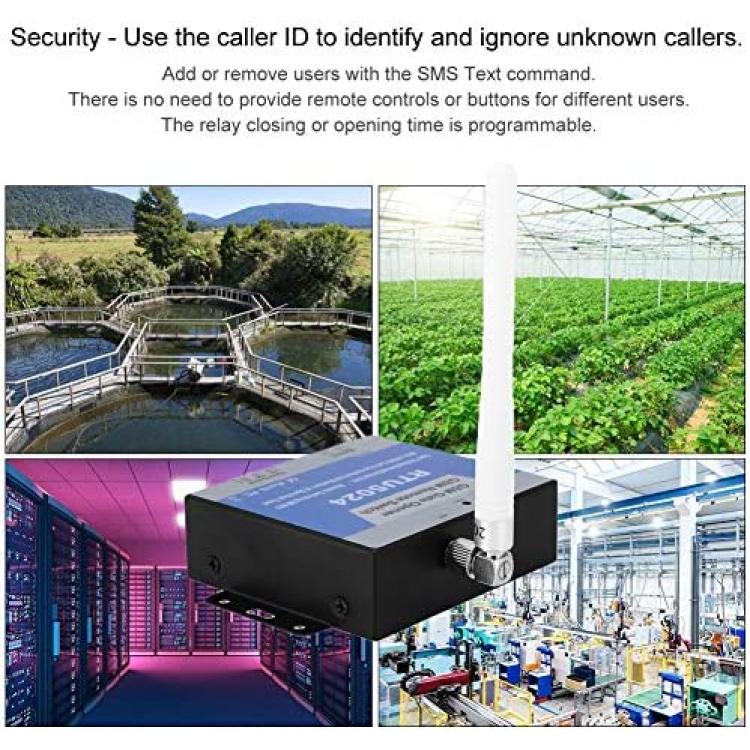

3. Security - Use the caller ID to identify and ignore unknown callers.
4. Add or remove users with the SMS Text command.
5. There is no need to provide remote controls or buttons for different users.

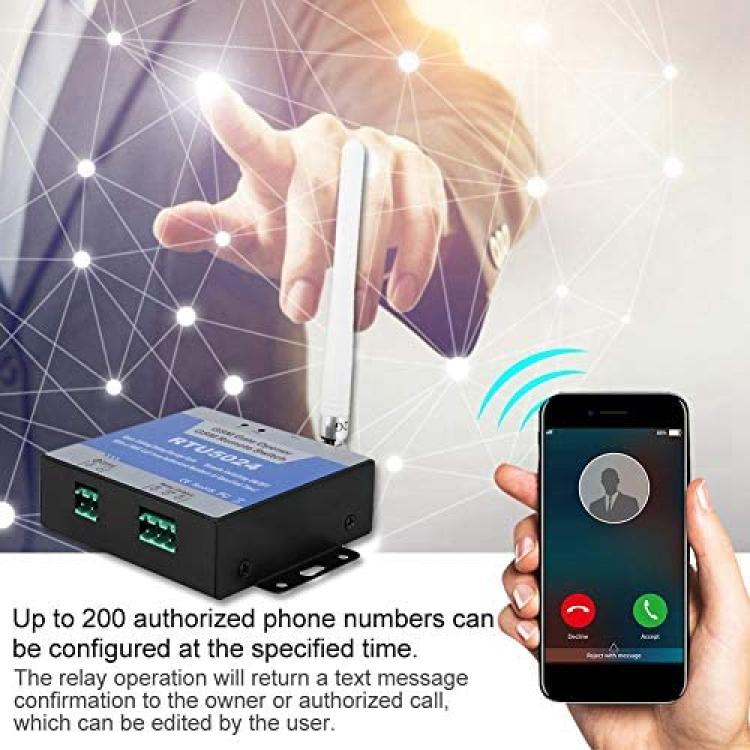

6. Up to 200 authorized phone numbers can be configured at the specified time.
7. The relay operation will return a text message confirmation to the owner or authorized call, which can be edited by the user.
8. The relay closing or opening time is programmable.
9. With metal casing, IP30 protection level. The metal casing and system are safely isolated, especially suitable for industrial control applications.
10. Small size and support for wall mounting.
11. Multiple applications.

Specification:
Model: RTU5024

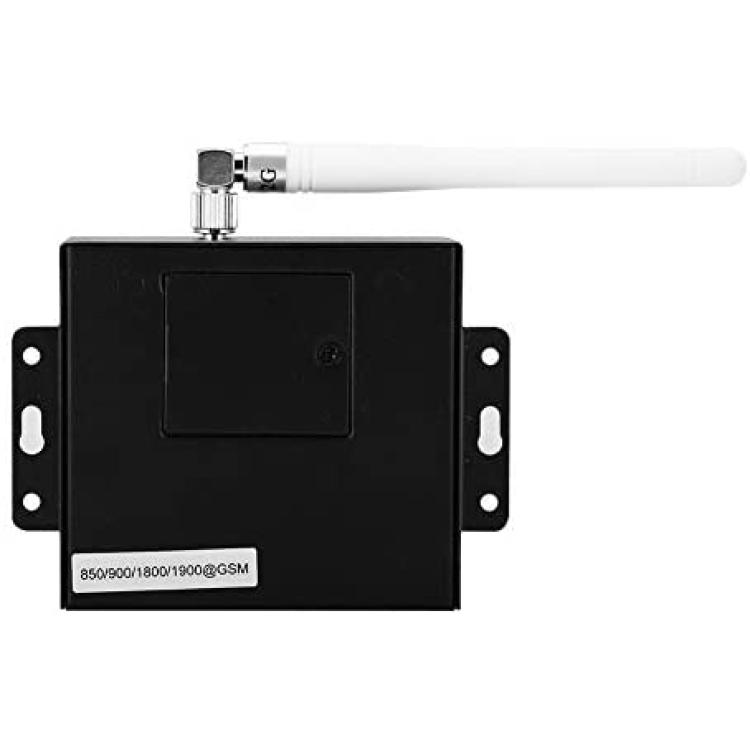

GSM frequency: 850/900/1800 / 1900MHz
Digital output: NC / NO dry contact, 3A / 240VAC
DC power supply: 9-15VDC / 2A
Power consumption: 12V, maximum input: 50mA / average 25mA
SIM card: standard SIM card
Antenna: 50? SMA antenna interface
Temperature range: -20~ + 60°C
Humidity range: relative humidity 90%
Package Size: about 13*9.5*3cm/5.12*3.74*1.18in

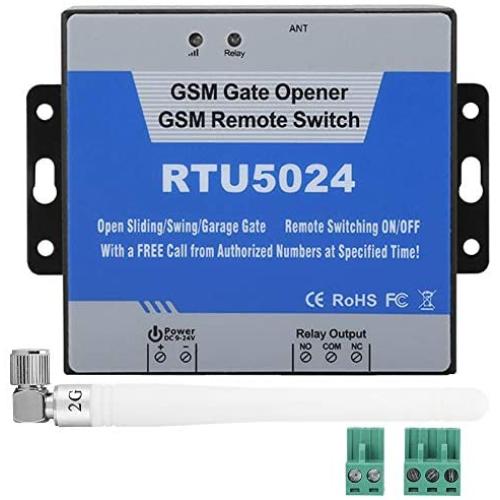

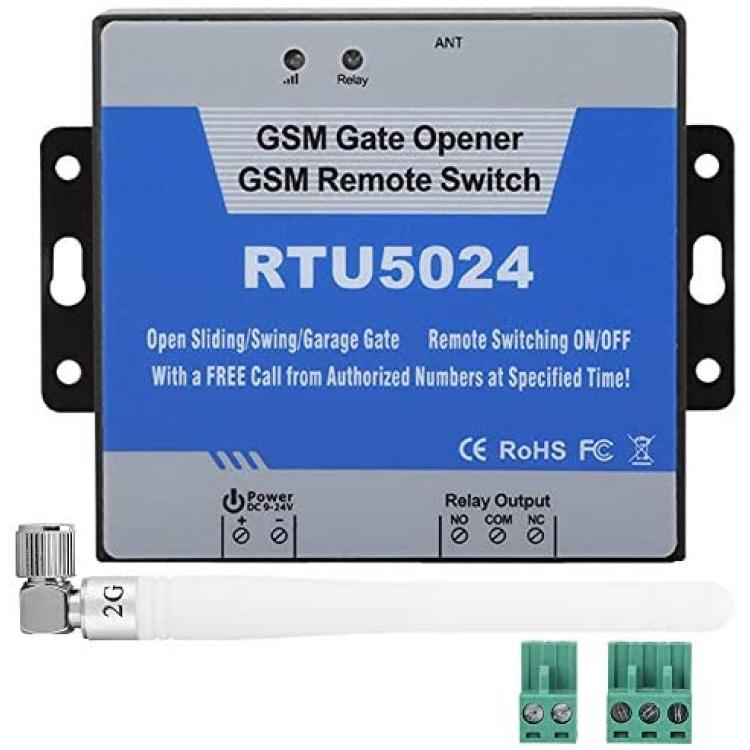

Package List:

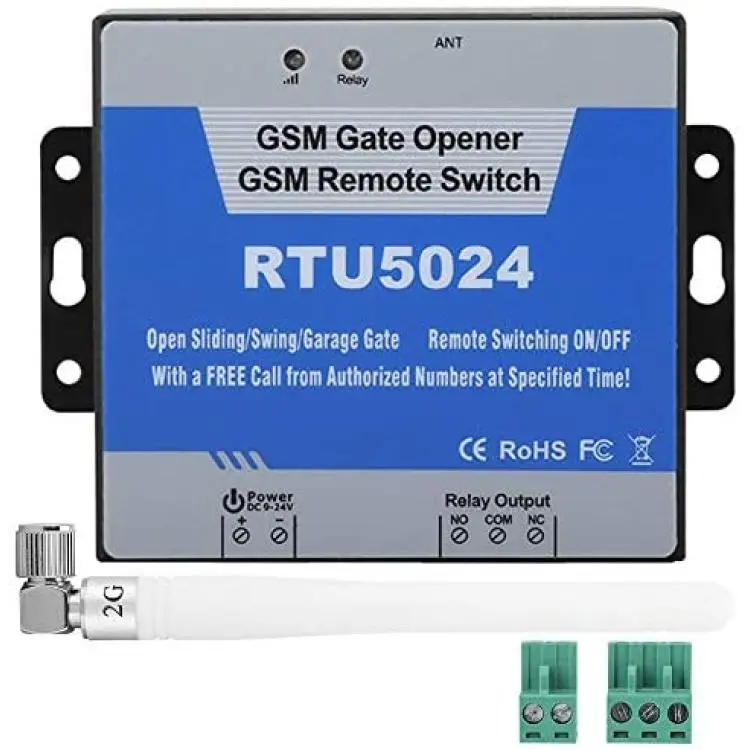

1 * GSM Mobile Phone Access Controller
1 * Antenna
2 * Terminal
1 * English Manual
