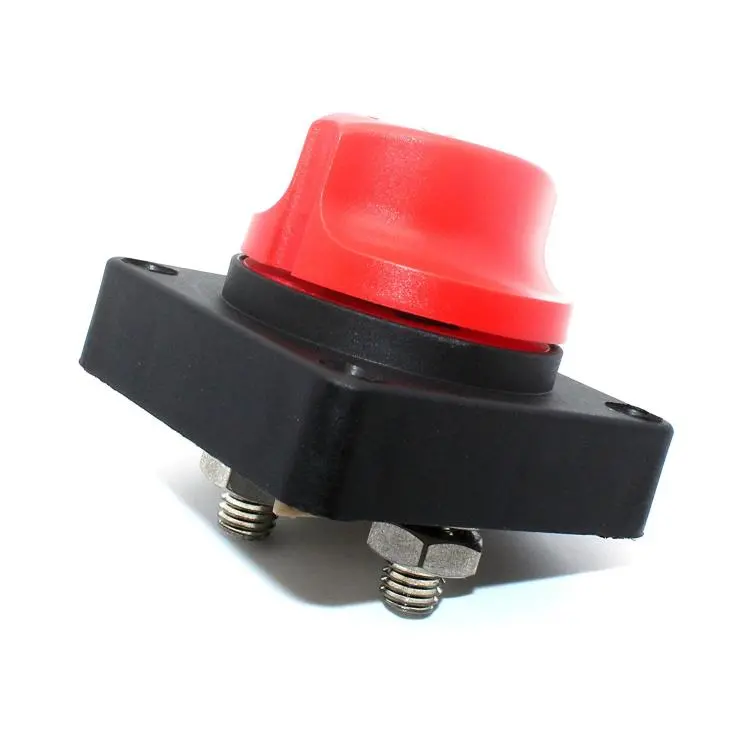

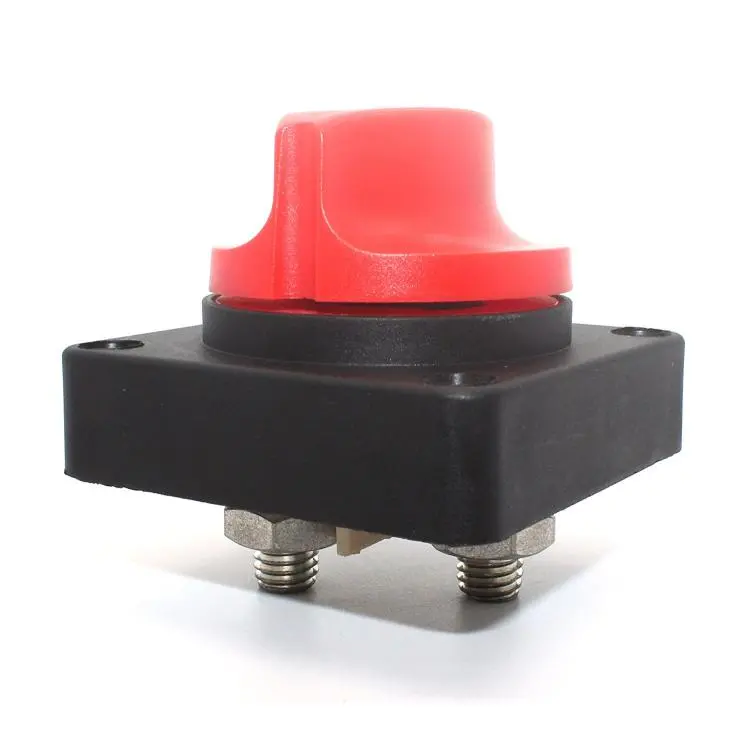

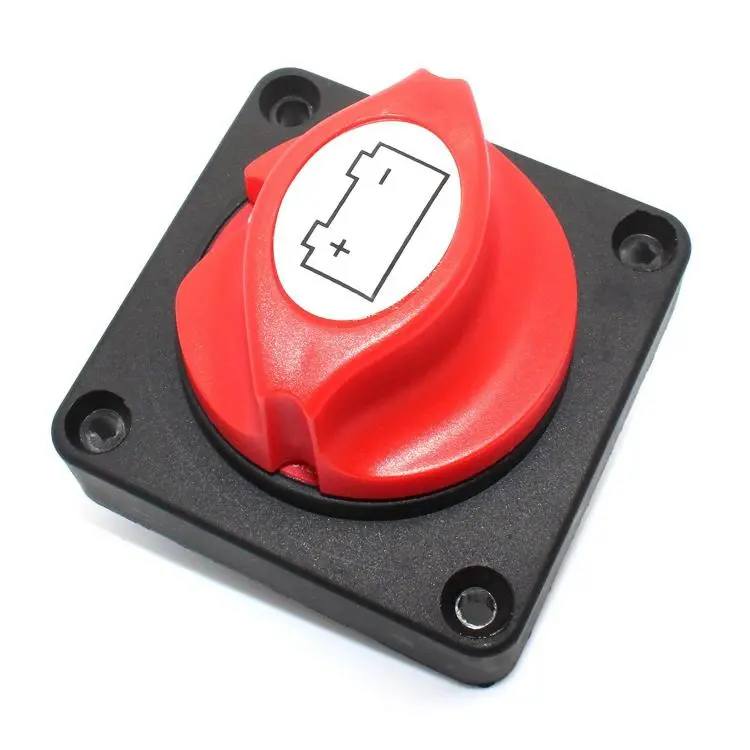

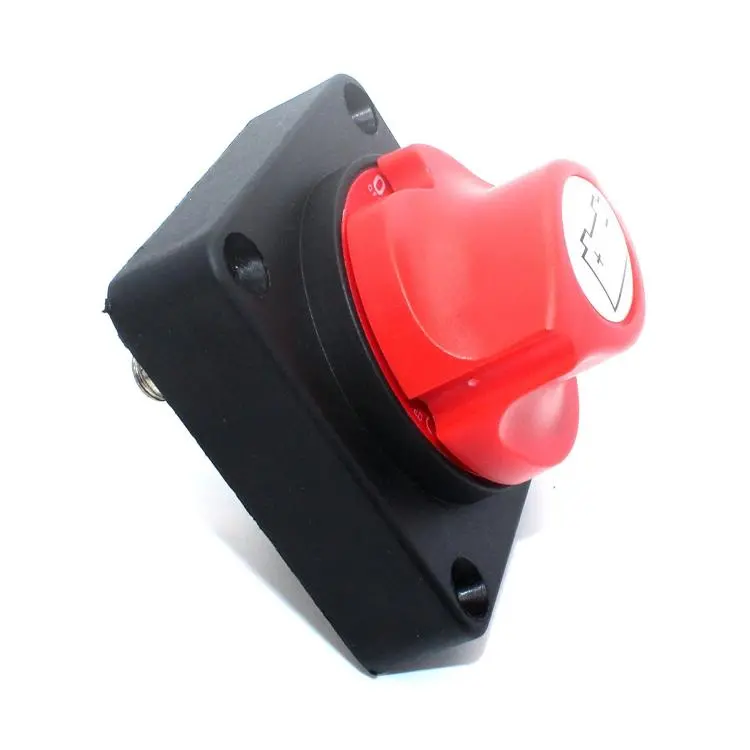

600 Amps Battery Disconnect Switch, 2 Position Disconnect Main Switch, On/off Disconnect Switch for RV Battery, Vehicle Battery, Marine  Battery, Boat Caravan, Rating 600 Amps Continuous,1000 Amps Intermittent
Share Facebook Twitter Pinterest Email

600 Amps Battery Disconnect Switch, 2 Position Disconnect Main Switch, On/off Disconnect Switch for RV Battery, Vehicle Battery, Marine Battery, Boat Caravan, Rating 600 Amps Continuous,1000 Amps Intermittent

Product Code: WGAUTO003
Availability: In Stock
US$18.99
-+

The high quality main disconnect switch for your vehicle and marine. It perfectly works ranging from voltage DC 8V to DC 50V, and  with rating capacity - 1000 Amps Intermittent, 600Amps continuous at Dc12V.

Specification:

Position: ON - OFF
Voltage: 8V - 50V DC
Current Rating: 600A(12V), 300A(24V), 150A(48V)
Base Size: 2.66inch x 2.66inch (68mm x 68mm)
Height: 2.90"inch(74mm)

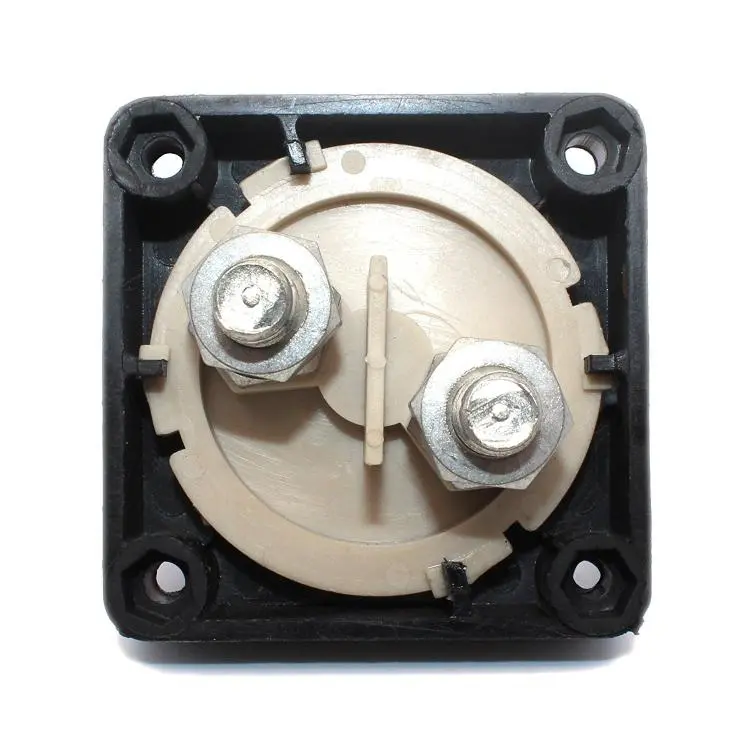

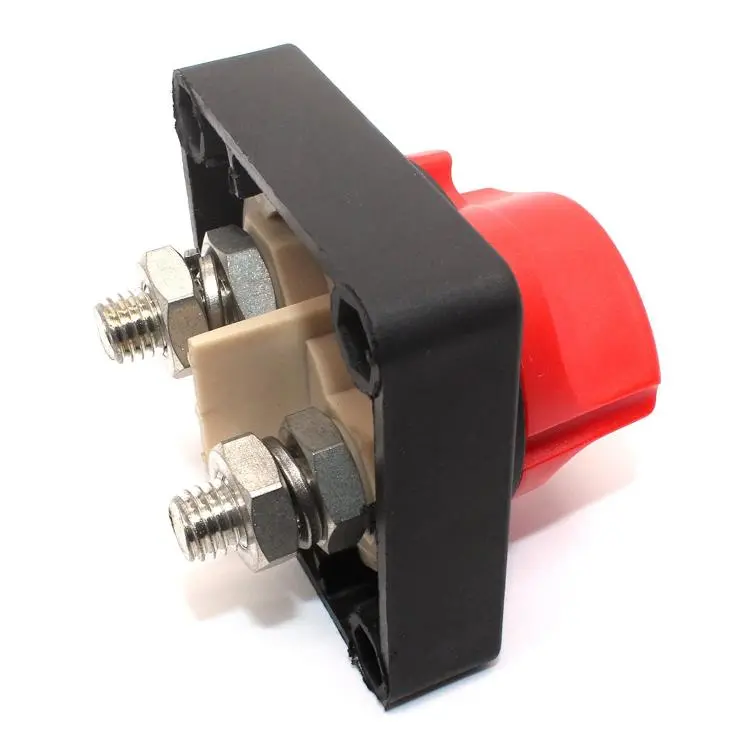

Terminal studs: 4inch (10mm) diameter
Electrical life: 10000 cycles
Rated current and voltage: 300A 60V DC
Contact resistance: 50m?
Insulation resistance: 100M?
Dielectric strength: 1500VAC / 1min

Features:

Ignition protected - Safe for installing aboard gasoline powered boats or vehicles.Disconnect before break contact, allows switching control between battery banks without power interruption.Offers a simple economic way of isolating battery
Heavy-duty design, High-quality

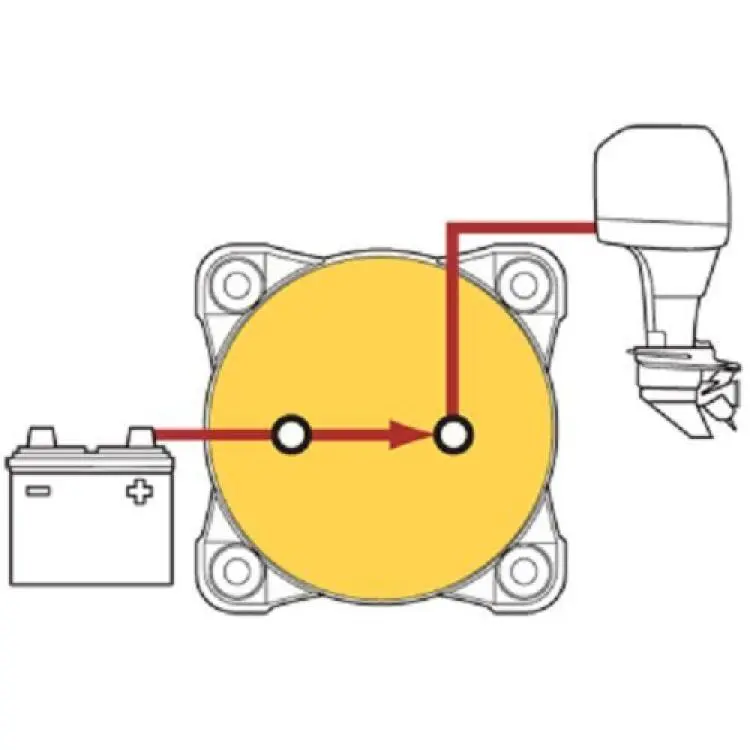

Easy Installation - Comprehensive wiring diagram and installation guide.
