Verizon Cell Phone Signal Booster 4G LTE Verizon Cell Phone Booster Amplifier FDD 4G Mobile Signal Booster Repeater 65dB 700MHz Band 13 for Home Use - Boost 4G Data and Voice for Remote Area

Cell phone signal booster aims to boost Verizon 4G 700MHz Band 13 signal, help improve voice&data speed, stop missed/ dropped calls, support multiple user at the same time.

Please Note:
1.This cell signal booster could only work with Verizon 700MHz 4G LTE Band 13 network frequency.
2.This signal booster could only make the weak signal stronger, it couldn't generate any signal, so the Outdoor Antenna should receive 2-3 bars of stable signal in the location where it is mounted, or the booster couldn't work very well.

Operation Frequency of Signal Booster: Band 13
Uplink:776MHz-787MHz,Downlink:746MHz-757MHz
Emission Designator:LTE(G7D)
AGC LEVEL:Uplink:-45.00 Downlink:-56.00
Max.Antenna Gain:Uplink:8.1dBm Downlink:7.85dBmi
FCC Classification: B2W/Wideband Consumer Booster(CMRS)

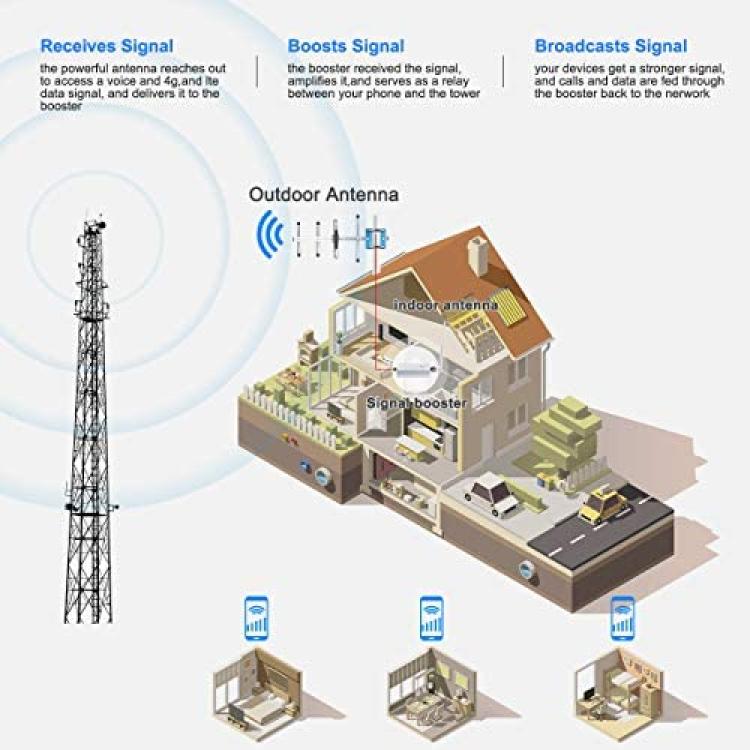

Installation Guide for Mobile Signal Booster:
1.Please kindly download Network Cell Info Lite (free app) to find out the nearest Verizon cell signal tower.
2.Connect the coaxial cable to the Outdoor Yagi Antenna, then keep the Outdoor Yagi Antenna point at the nearest Verizon cell signal tower.
3.Mount the signal amplifier device in your house where is near from the power socket, and have good ventilation
4.Tightly connect the coaxial cable to the OUTDOOR port of the repeater
5.Tightly connect the Indoor Whip Antenna to the INDOOR port of the signal booster.
6.Connect the power adapter to the signal amplifier.

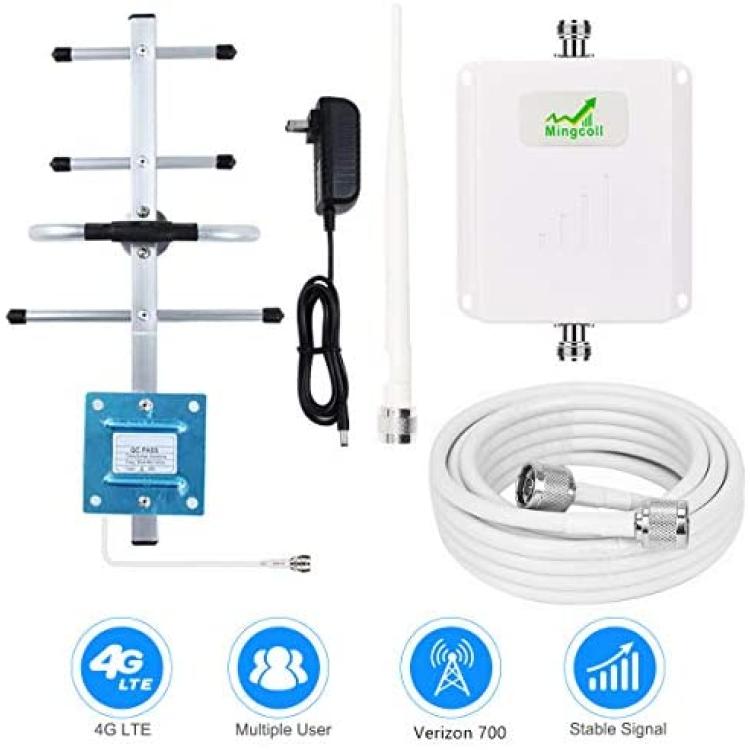

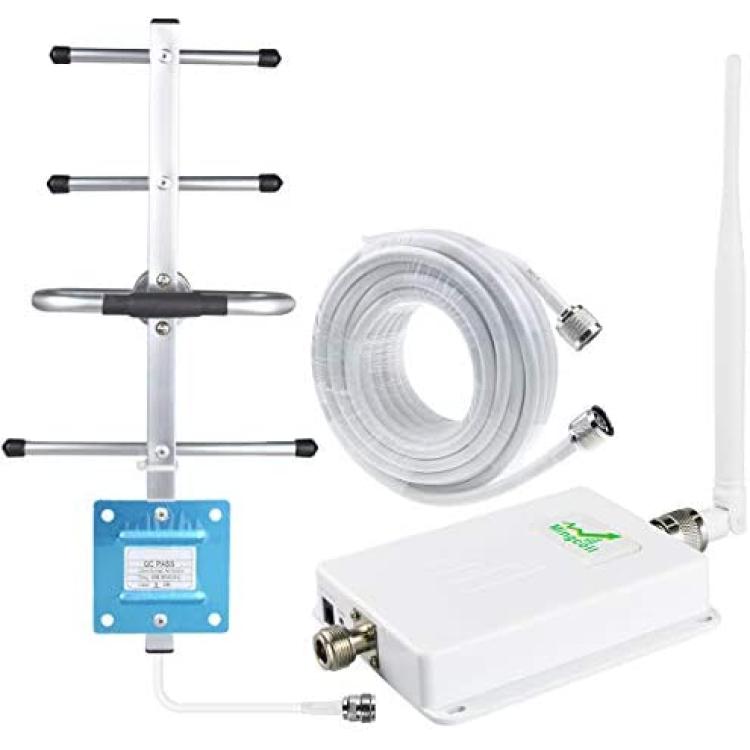

Packing Details:
Cell Signal Booster
Outdoor Directional Yagi Antenna
Indoor Directional Whip Antenna
Outdoor Coaxial Cable
Screws for Mounting
English User Manual
