Easygnal Cell Phone Signal boster for 2G 3G 4G LTE AT&T,Verizon,T-Mobile, Daul Band 2/5 850/1900Mhz, Repeater Amplifier Kit for Home and Office

Why choose our equipment?

New signal booster, the host uses double engineering grade aluminum alloy.

It isolates the electromagnetic radiation generated by the chip’s operation, which effectively avoids external interference.

High-end chips make the signal more stable and the call clearer, ALC automatically controls signal.

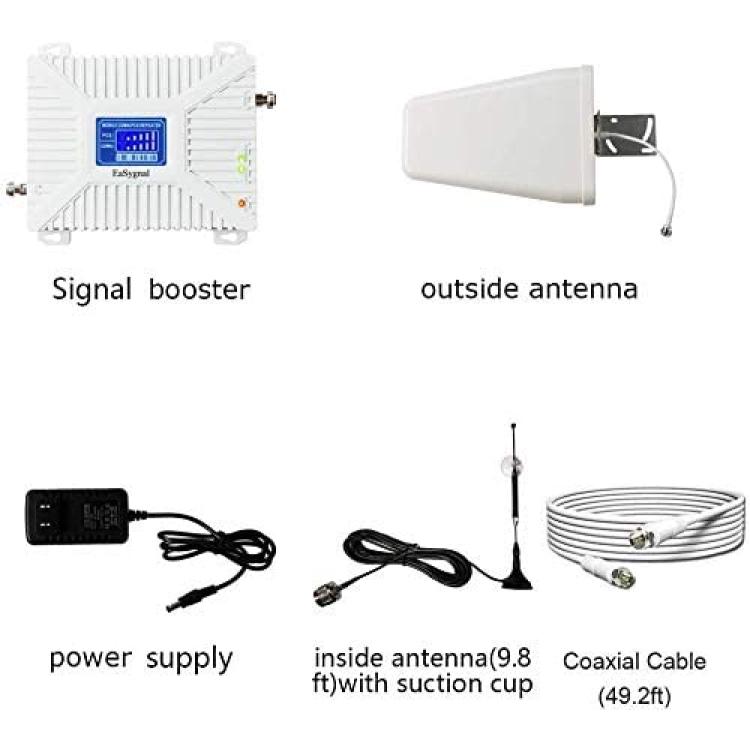

The package includes:

Main engine (host)*1

The indoor antenna containing 9.8 ft of wire*1

Outdoor logarithmic periodic antenna*1

Coaxial Cable 49 ft*1

Host parameters:

Upload 824-849Mhz/1850-1910Mhz

Download 869-894Mhz/1930-1990Mhz

Gain: 65DB±2DB

ALC/AGC??30DB

Working voltage: DC-12V-2A

Input voltage: AC100-240V 50/60Hz

Voltage?5W

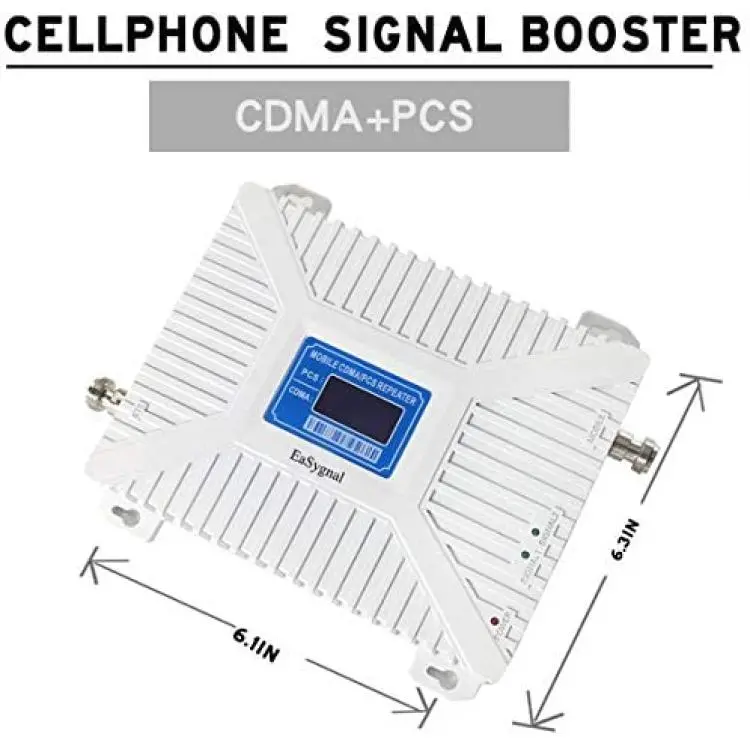

Dimensions: L7.8in*W 5.9in*0.7in

Working temperature: -25?-+55? (-13F to 130F)

The indoor antenna with suction cup parameters:

Has 9.8-ft wire to the booster.

Frequency range: 806-960Mhz&1710-2700Mhz

Gain: 3DB

360°all-directional emission without blind spots. The antenna base has magnets that can be attached on metal.

Outdoor antenna parameters:

Logarithmic periodic

Frequency range: 806-960Mhz&1710-2500Mhz

Gain: 9DB

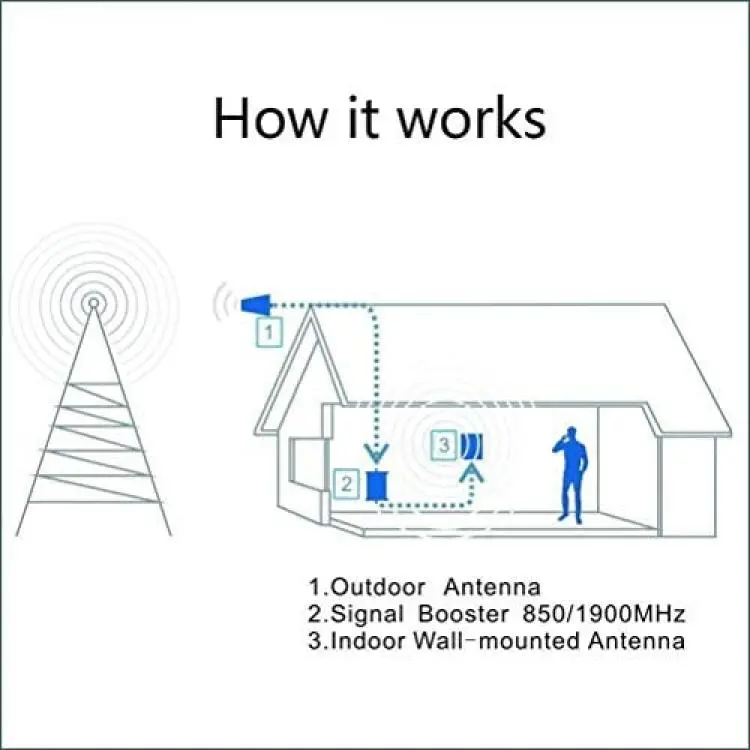

Utilize the principle of radar beam emission, aim the antenna to the base station, and the connection quality will be better.

50? custom coaxial cable parameters:

49-ft long

Material: Inner conductor is copper

Multi-band simultaneous transmission is realized, and connection is more stable.
