Mobile Signal Repeater Booster Amplifier 900MHz, 2G 3G 4G Cell Phone Call Signal Repeater + Antenna for Boosting Extending Mobile Phone Signal
Availability: Pre-Order, Inquiry Price
About this product
*☀【ALC Technology】The mobile signal repeater is full-duplex, Dual-port design with the use of ALC technology, which can adjust extent automatically. (Free Shipment, US Stock!)
*☀【Frequency & Gain】Frequency range : 890MHz--915MHz(Up link); 935MHz--960MHz(Down link). Gain : (Up link) 50/55/60/65Db/±10DB (Down link) 55/60/65/70Db±10DB.
*☀【Function】Our signal booster is able to enhance the signal of up to 150 square meters indoor. With Big linear power, it controls intermodulation and scatteration stably. It has LED Light Working and Signal Condition Indicators.
*☀【Dependability & Compatibility】Dependability stands by GB6993-86 standard. Compatibility of electromagnetism is according with ETS300 609-4.
*☀【Best Service】Quality Guarantee is the basic rule. We are dedicated to providing quality services, quality products and fast delivery(US WAREHOUSE). We have a professional customer service team to answer your questions within 24 hours. Any question, please contact us.
Description
Mobile Signal Repeater Booster Amplifier 900MHz, 2G 3G 4G Cell Phone Signal Repeater +Antenna
Â
Note: The Signal Repeater Call support 2G / 3G / 4G, the network can only support 2G.
Â
Features:
? High gain, easy installation and operation.
? Full-duplex, Dual-port design.
? Use ALC technology, adjust extent automatically.
? LED Light Working & Signal Condition Indicators.
? Big linear power, control intermodulation & scatteration stably.
? Dependability stand by GB6993-86 standard.
? Compatibility of electromagnetism according with ETS300 609-4.
? CE and RoHs Approved.
Â
Specification:
Frequency range:
890MHz--915MHz(Uplink); 935MHz--960MHz(Down link)
Power: -70 ~-40dBm/ FA (1.23MHz)
Gain : (Up link)50/55/60/65Db/±10DB (Down link) 55/60/65/70Db±10DB
Signal coverage: Up to cover for 150 square meters use
Impedance: 50?
Seclusion: >65dB
Power supply:110V
Output Voltage:5V
Compact design: Indoor use
Signal Repeater Size: 140*100*20mm/5.51*3.94*0.79"
Â
Installation Approaches

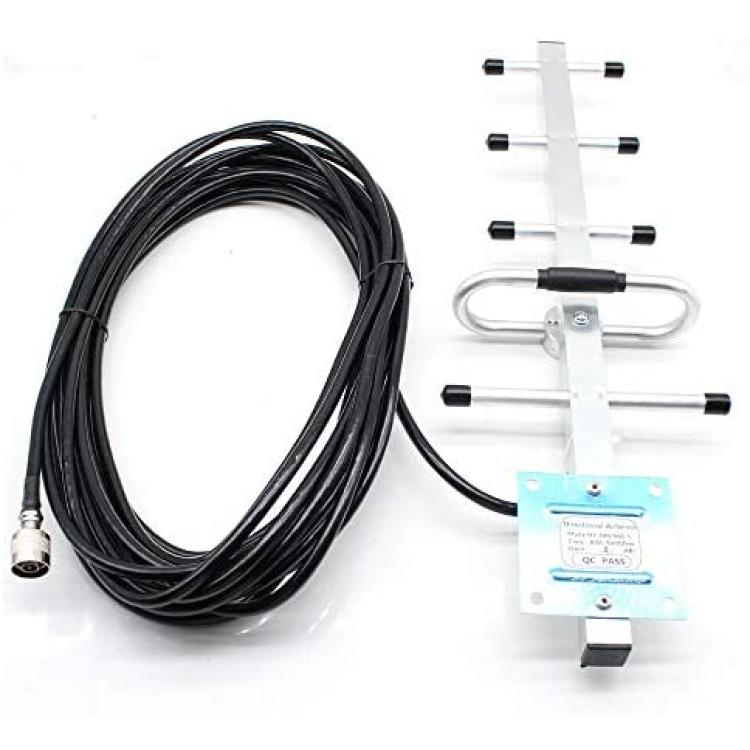

1. Fix up outdoor antenna reception on house top and point to signal tower.
2. Connect outdoor antenna to "BTS" port in repeater machine through cable.
3. Connect indoor antenna(s) to "MOBILE" port in repeater machine through cable also.
4. Plug power adaptor into AC power socket and finish installation.
Â
Installation Note:
1. please make sure distance above 10M between indoor and outdoor antenna, it’s better to divide one from another by a wall.
2. Please try to choose a good signal place to set up outdoor antenna.
3. Please make sure that there are good signal 4-5 bars on your outdoor, or it will not work on your room.
Â

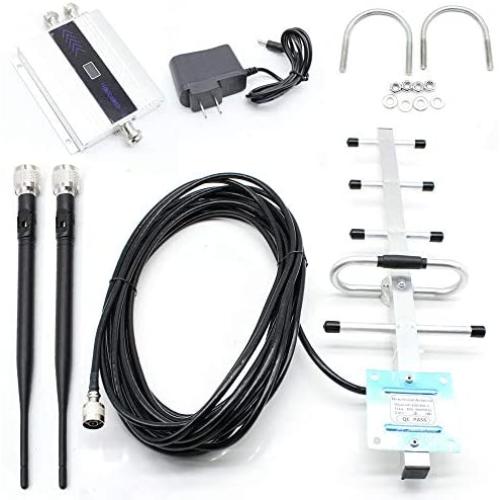

Package:
1 x Mobile Signal Repeater
1 x Indoor Antenna
